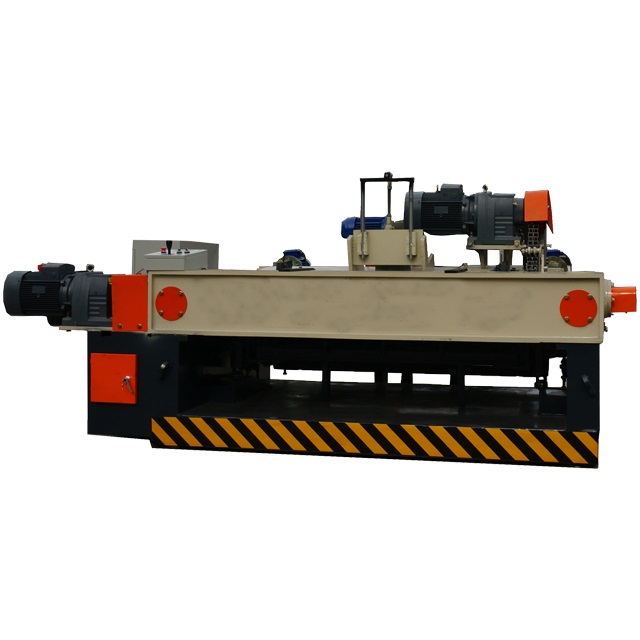

Wood Face 4ft Spindle Veneer Peeling Machine

The 4 feet veneer peeling line is one of the essential equipment for producing plywood. It includes log debarker, veneer peeling machine and auto veneer stacking machine as well as the related knife grinding machine. Shine veneer peeling line not only improves the quality and precision of veneer production, but also greatly improves the production efficiency and the degree of automation of the whole machine.

  Contact Now
Product Details

Wood Face 4ft Spindle Veneer Peeling Machine

veneer peeling Machine has digital control system,high strength wear-resistant,stable rear axle rotation system,rotating single box automatically adjust the cutter joint system.Its stable structure can be suitable for wood, eucalyptus, maple, pine wood.The integrated structure improves the space utilization rate, reduces the workers quantity.Automatic adjustment of cutting system, make the skin more smooth, uniform. The large diameter wood veneer.This machine with auxiliary device for round, can keep the whole standard tail plate.

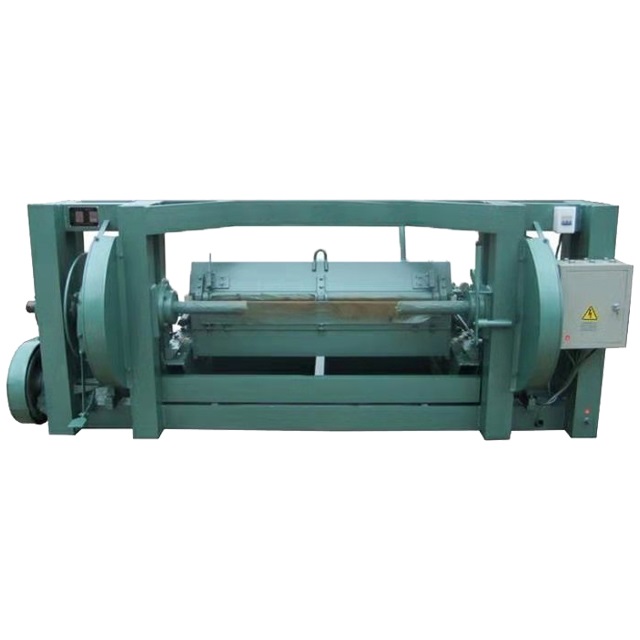

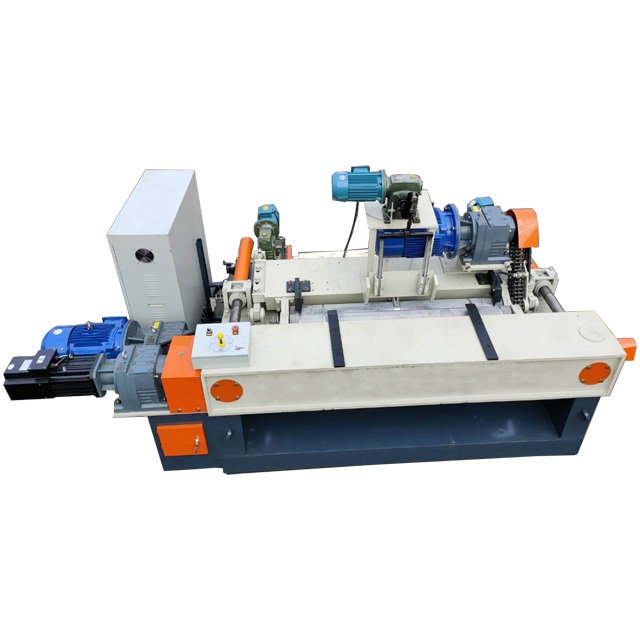

Veneer peeling machine

Veneer peeling machine

Advantages of 4 Feet veneer peeling machine

1. Double roller drive ensure good stability and high uniformity of peeler.

2.T10 reducer -- low vibration ,smooth and steady transmission ,low noise , high bearing capacity .

3. Hydraulic knife holder saving manpower ,simple operation and automatic.

4. Automatic adjust knife sewing -- double convex rail design structure,more accurate ,faster and more stable than the original

single convex rail adjustment ,and no manul screw adjustment workers ,saving manpower.

log peeling length

970mm-1270mm

veneer peeling width range

660-2600mm


veneer thickness peeling range

1.0-4.0mm

Max. log diameter

650mm

min.core veneer after peeling

38mm

peeling speed

48m/min

Single roller motor

11kw*2pcs

Double roller motor

11kw*2pcs

feeding motor power

11kw

clipper and rubber roller motor

5.5kw+2.2kw

Total power

62.7kw

Leftover core clapper

pneumatic

single double roller diamenter and type

125mm(diamond shape, chromeplate)

Main reducer model

R87 hardened gear surface

Total weight

13000kgs

Overall dimension

5800*2300*1500mm
