2 Deck Plywood Veneer Dryer for Sale

Veneer Dryer made by Shine Machinery can be applied for the drying process of top and bottom veneer and thickened core veneer. Featured with less acreage and more usage,applied with the advantages of the advanced veneer dryers in and abroad,and designed for the purpose of economy,trustiness and high grade,our product guarantees a promotion of yield,an improvement of products,a cut of energy consuming and production cost,as well as satisfactory increasing benefit.

Contact Now

Product Details

Product Description

Plywood Veneer Dryer is meant for drying the Core Veneer & Face Veneer and is the Dryer of choice all over the country as well as abroad. We have a professional R&D team that can design different models according to customer’s special requirement. Shine Veneer Dryer is the most economical dryer available because it consumes much lower power as compare to the any other brand. Our Jet Ventilated Roller Track Veneer Dryer can run on Steam as well as Thermic Fluid.

veneer dryer machine

Features:

1.The machine is the main apparatus in plywood industry.

2. It uses to remove moisture from the veneer.

3.The heat medium can be thermo oil and heat steam.

4.The whole machine can be divided into two parts: heating section and cooling section.

5.It includes mesh type, roller type, mesh&roller type, could be customized according to your requirements.

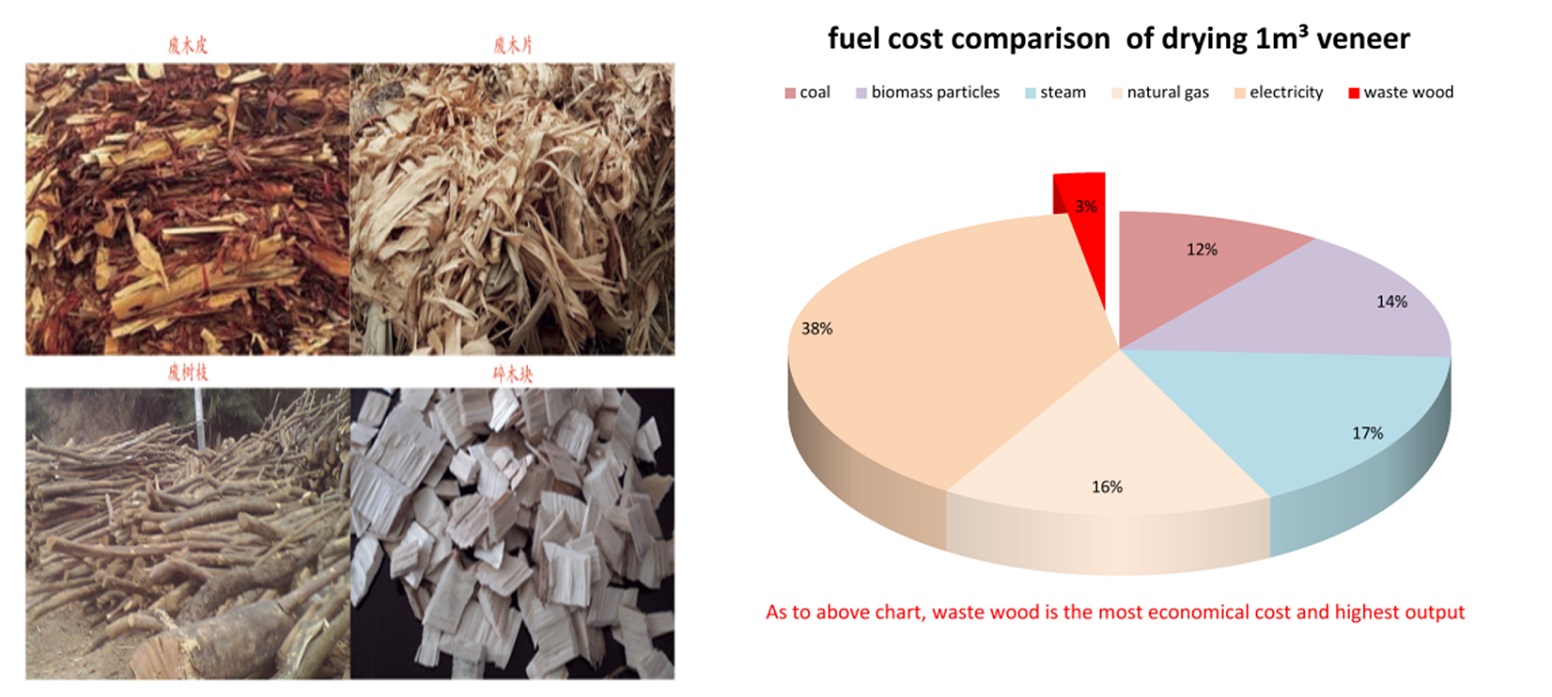

Dryer fuel cost comparison

Product parameters

Parameter Model	DHS20M	DHS24M	DHS28M	DHS32M	DHS36M	DHS40M
Work width（m）	3	3	3	3	3	3
Deck	2	2	2	2	2	2
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	16	20	24	28	32	36
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	0.8-1.1	1.1-1.4	1.5-1.8	1.8-2.2	2-2.5	2.4-2.7
Heat exhaustion（10000 kcal）	28-38.5	38.5-49	52.5-63	63-77	70-87.5	84-94.5
Total power (kw) about	66	77	88	114	117	121
Overall size LxW（m）	25*4.5	29*4.5	33*4.5	37*4.5	41*4.5	45*4.5

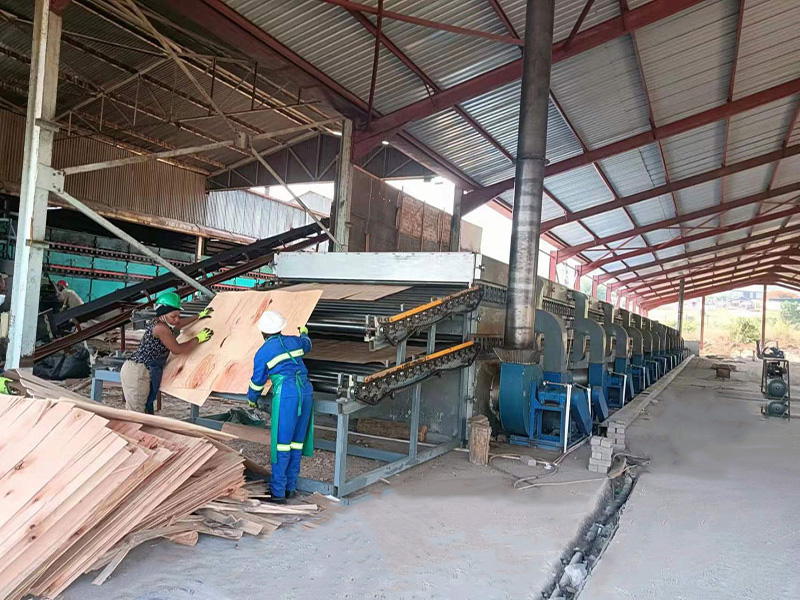

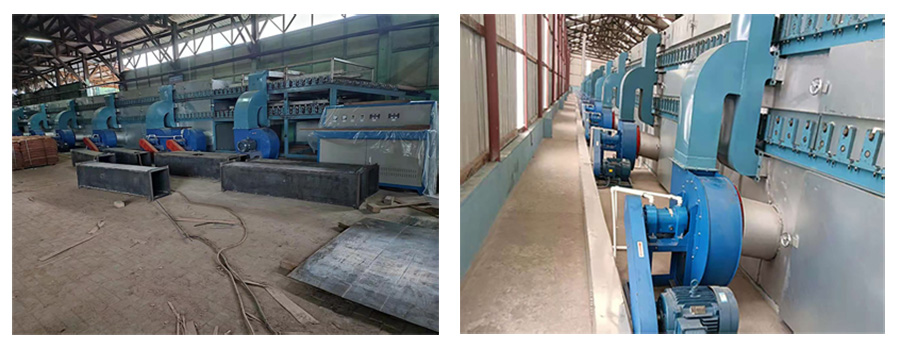

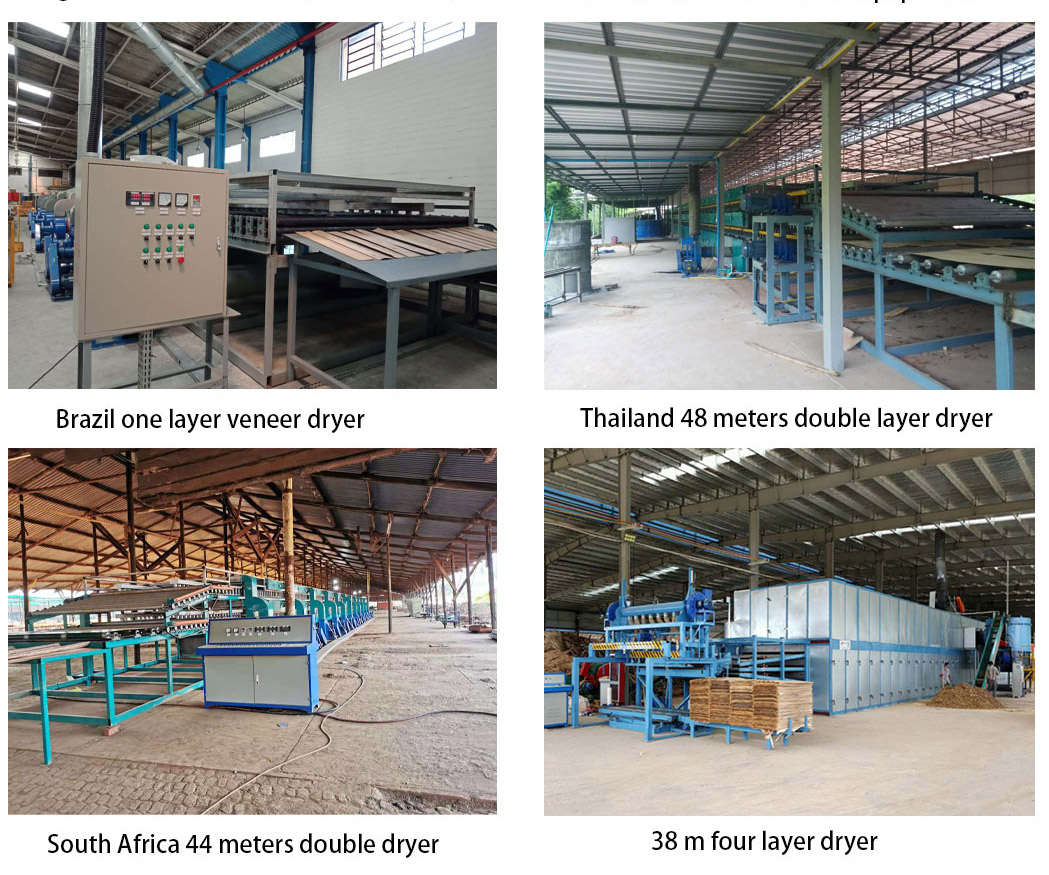

Customer Case

Customer Case

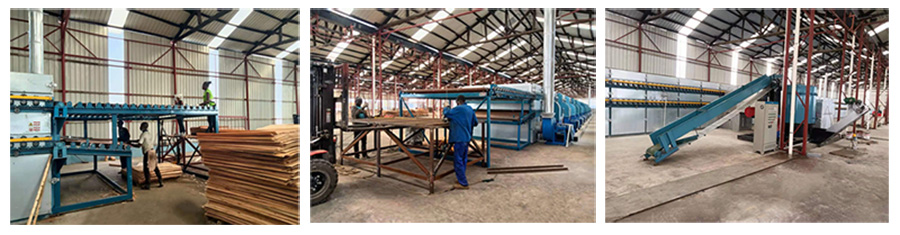

Customer Visits

Customer visit pictures

Our Services

Pre-sale services:

1) Provide the free consultation of all Core Veneer Dryer Machine

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

4) Door to door service is possible

Product Packaging And Transportation

Product Packaging And Transportation

Send your message to us

Related Products

Shine Machinery is a large manufacturer specializing in the development of wood veneer dryer and veneer sheet peeling equipment. Provide one-stop veneer production solutions with rich experience, technological innovation and after-sales guarantee.
