Roller Veneer Drying Machine

Shine veneer dryer has The combined drying cost is about $6-12 / m3, including labor, fuel and electricity costs.Shine customers come from more than 100 countries around the world. Due to the use of an axial fan, The power is half lower than the traditional dryer, and the automation is high (can be equipped with automatic feeding system and collection system).

Veneer Thickness（mm）：0.6-8

Finished Water content(%)：10

Work Width（m）：3

Heat Source: biomass burner

Contact Now

Product Details

Product Description of Roller Veneer Drying Machine

Our veneer dryer has been known for producing high-quality veneer, veneer drying moisture content uniform, beautiful appearance, and enough flexibility to reduce damage in the stacking process. Core veneer dryer is suitable for core veneer drying.The dryer machine can effectively use various resources and occupy a small area. We also can do other type veneer dryer such as 1 Deck Veneer Dryer. Face Veneer Dryer ,Core Veneer Dryer, Automatic Veneer Feeder , 3 Deck Veneer Dryer ,2 Deck Veneer Dryer. We can design the veneer dryer according to the needs of ourcustomers.The veneer dryers machine have to be used together with wood chipper , as the wood chips size can't be larger than 5cm.

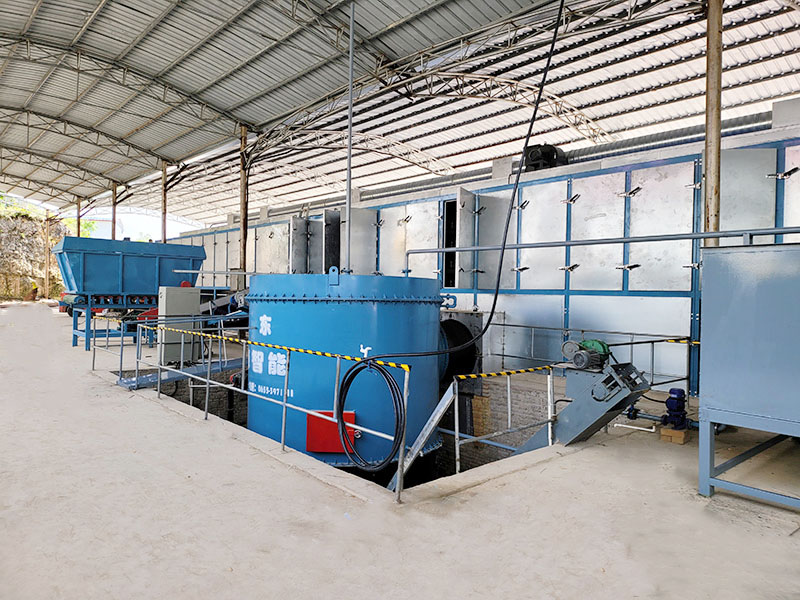

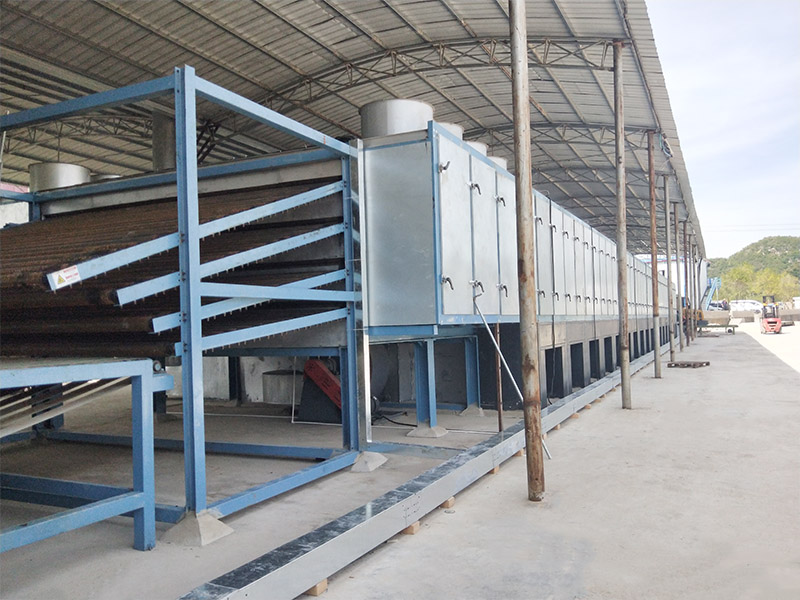

roller veneer drying

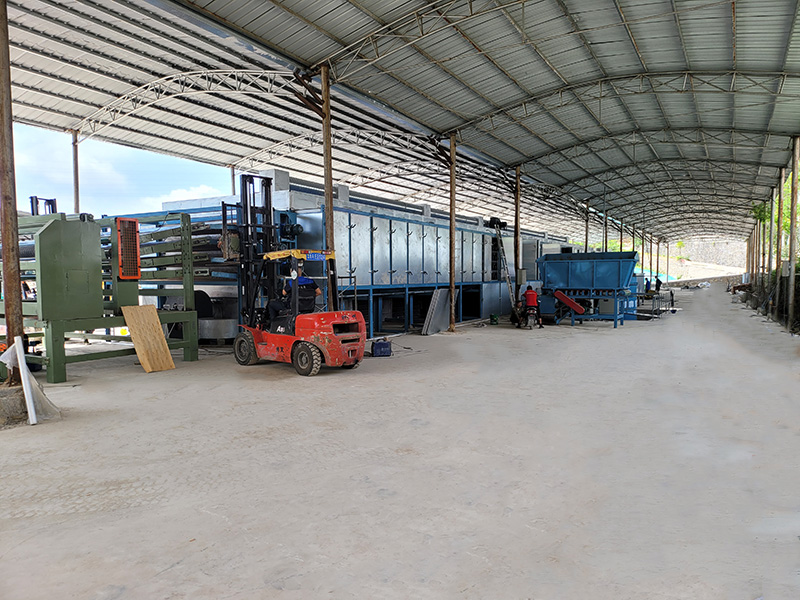

veneer dryer

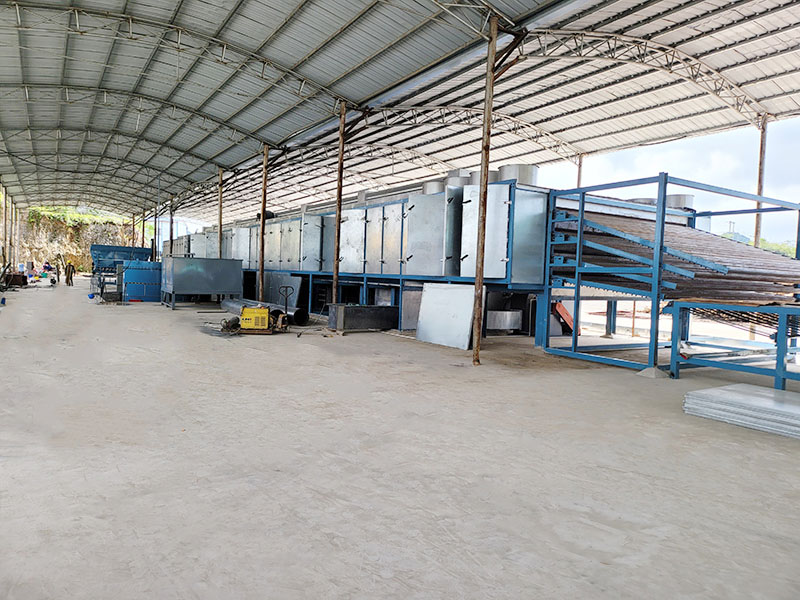

veneer dryer machinery

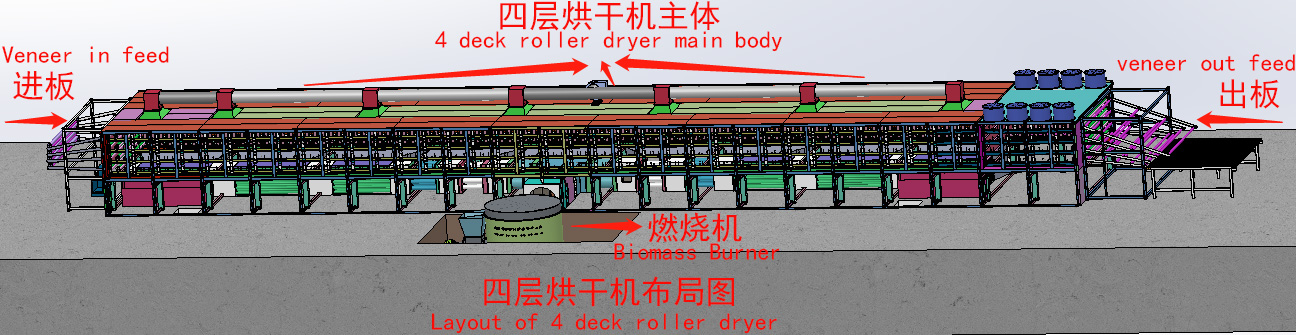

Layout of 4 deck roller dryer

Advantages of Roller Veneer Drying Machine

1. Shine biomass veneer dryer has the features of high veneer drying productivity,energy efficiency, lowest drying veneer cost and perfect veneer drying effect.The composite running cost is only about $12/cubic meter,which can improve customers' profit space greatly.

2. Customized working width of the 4deck veneer dryer is 4500m,the main body of the core veneer roller dryer is 40 meters length,divided into 36 meters drying chamber,and veneer cooling chamber 4 meters length.

3. The working layers, working width, and heating length of the Shine veneer dryers are available to be customized as per customers' specical requirements.

4. Shine Machinery is the only one factory in China who can make not only veneer dryer but also the heat source of the roller dryer, namely, biomass burner.

5. Unlike the steam boiler or thermal oil heater which are traditional heat source installed for the dryer, the biomass burner is the exclusive patented product that can completely burn crushed wood chips, and tree barks directly as the fuel, solving the waste accumulation problem in the veneer and plywood making factories. At the same time, the fuel cost is reduced mostly.

6. Professional R&D team can design different veneer dryer models according to customers' special requirements.

7. Perfect after-sale service system can ease the mind of customer after installation as we supply 24 online services and remote operation. Regular follow up service for old customers, and sufficient spare parts supply in time.

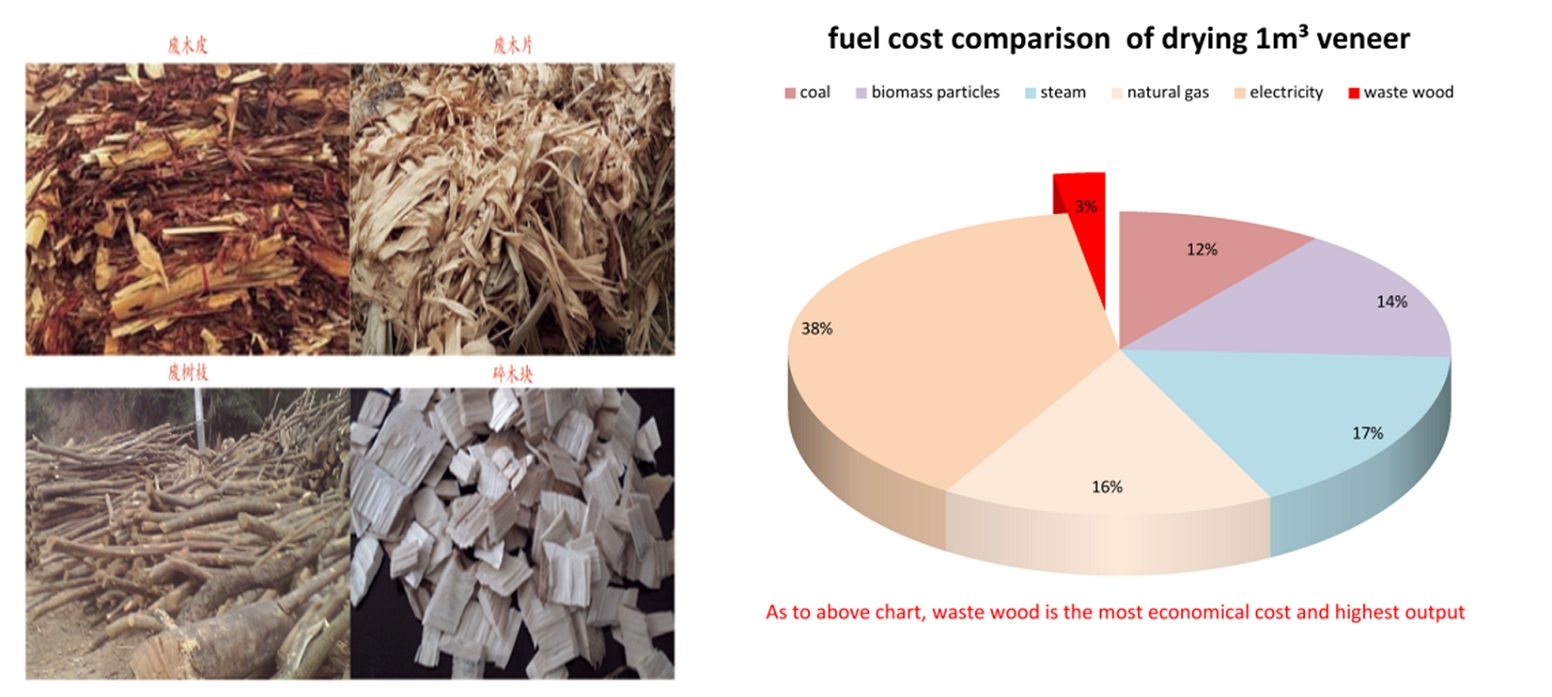

Dryer fuel cost comparison

Product Parameters

Parameter Model	DHS32M	DHS34M	DHS36M	DHS38M	DHS40M	DHS42M
Work width（m）	3	3	3	3	3	3
Deck	4	4	4	4	4	4
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	28	30	32	34	36	38
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	About 5	About 5.5	About 5.8	About 6.2	About 6.6	About 7
Heat exhaustion（10000 kcal/h）	About 175	About192	About203	About217	About231	About245
Total power (kw) about	135	140	145	150	155	160
Overall size LxW（m）	43*5.5	45*5.5	47*5.5	49*5.5	51*5.5	53.*5.5

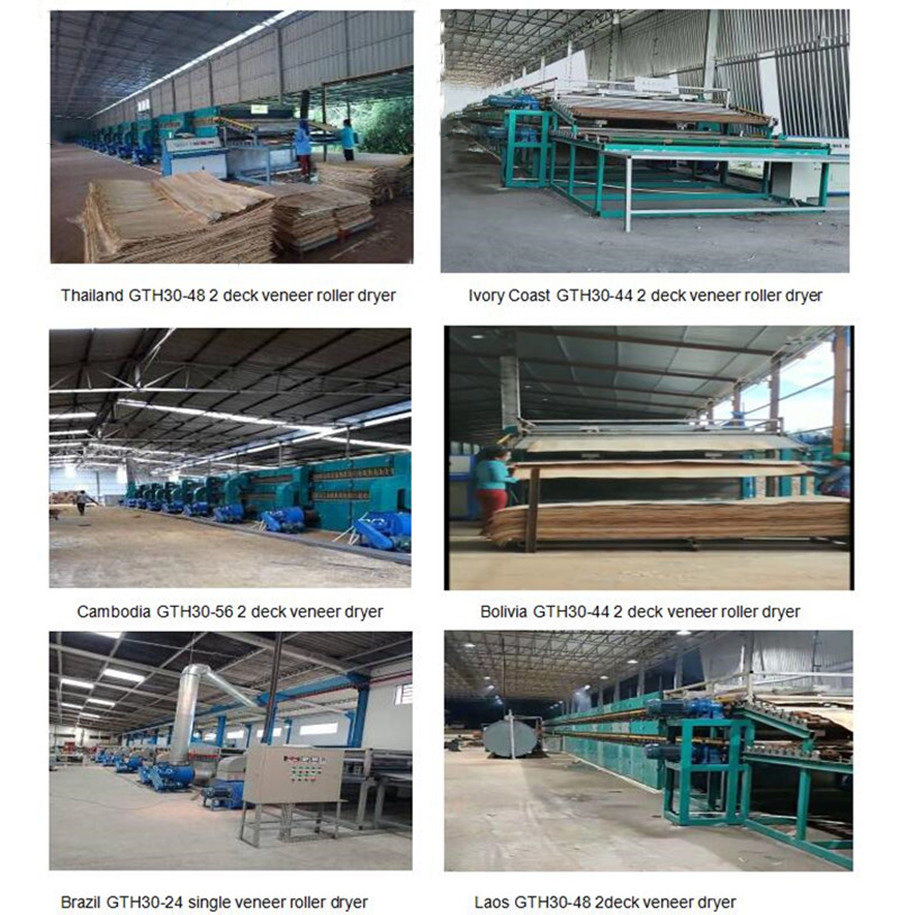

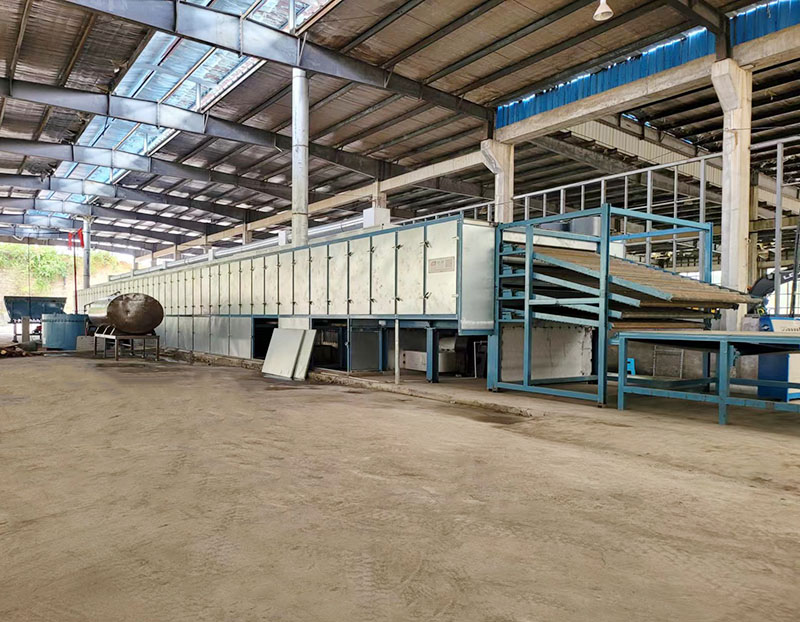

Customer Case

Customer Case

Exhibitions and Customer Visits

Exhibition

Customer visit pictures

Our Services

Pre-sale services:

1) Provide the free consultation of all Core Veneer Dryer Machine

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

4) Door to door service is possible
