Conveyor Mesh Belt Air Dryer Product

The equipment is flexible in configuration, and there are many materials for drying at one time, and it can be continuously produced and dried, which is convenient to use and greatly reduces labor.The structure is simple, easy to install, can run for a long time, can enter the interior of the box for maintenance when the fault occurs, and the maintenance is convenient.

Contact Now

Product Details

Conveyor Mesh Belt Air Dryer Product

Mesh belt veneer dryer which is one of the main equipment in veneer and plywood production and can be used for continuous drying operation. It is used for drying veneers with rotary cutting and slicer and it is designed especially to dry the very thin face veneer typically at 0.2-1.2mm thickness. It is composed of four parts, which are divided into feeding area, heating area, cooling area and discharging area. It has features of high efficiency, low energy consumption, and better meets the production process of the product.

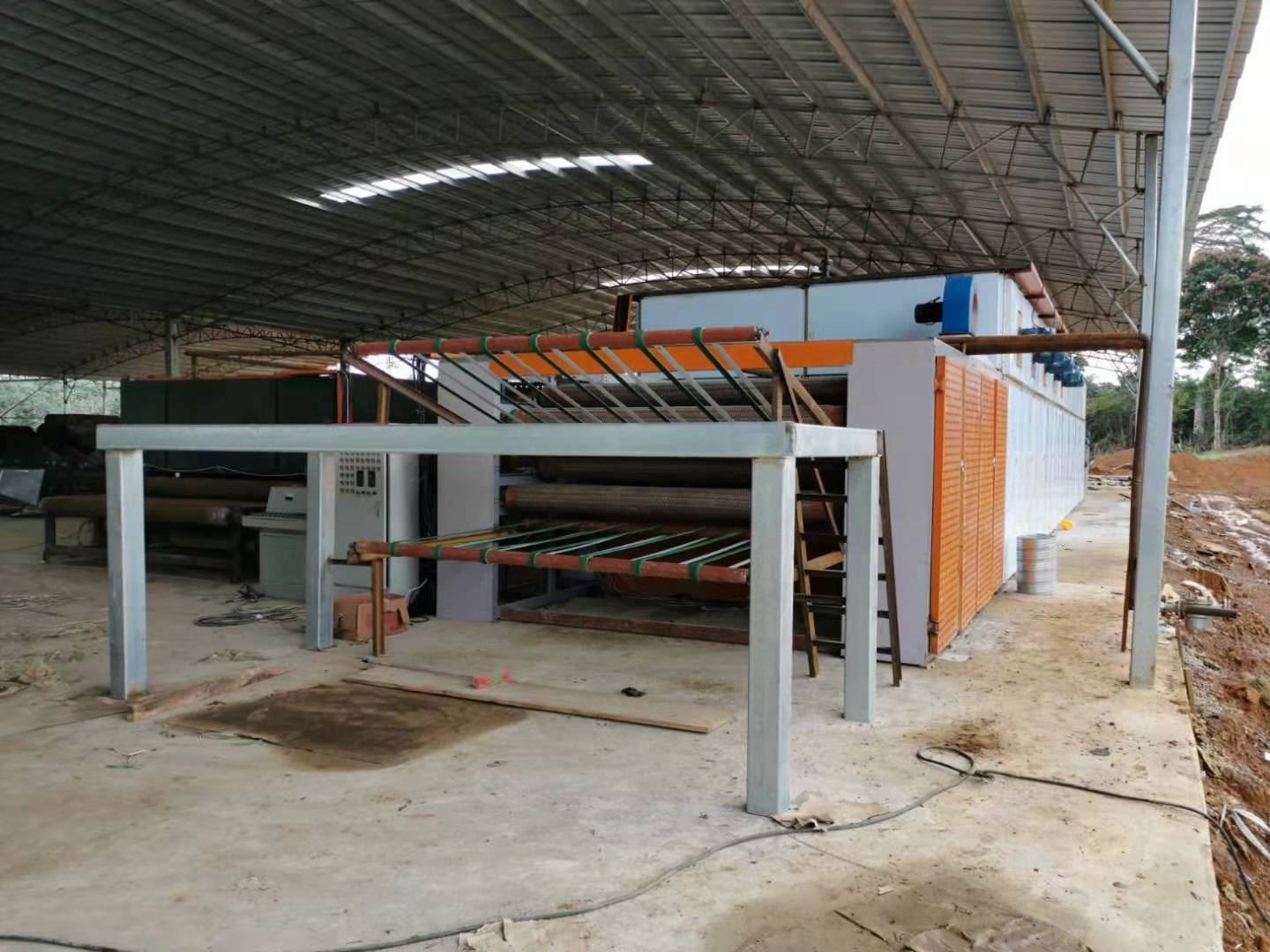

mesh belt veneer dryer

Features

Drying Slicer veneer, Stay log lathe/half round slicer veneer, rotary peeling face veneer.
Reliable operation, longer service life, energy efficient and unmatched performance.
Mesh belt dryer is a closed-belt dryer. Its feature is that only the feed end and the discharge end are open, and the others are closed. Hot air flows through the equipment and the heat loss is low, which can save a lot of energy.
The equipment is flexible in configuration, and there are many materials for drying at one time, and it can be continuously produced and dried, which is convenient to use and greatly reduces labor.
The structure is simple, easy to install, can run for a long time, can enter the interior of the box for maintenance when the fault occurs, and the maintenance is convenient.

Model No.	20m Double Deck Mesh Dryer
Working Width	3000mm
Layers	2
Heating Section	6 sections×3000mm=18000mm
Cooling Section	1 section×2000mm=2000mm
veneer feeding section	1500mm
veneer discharge section	1500mm
Total Power	31.7KW
Transmission Motor	5.5kw×1 pcs=5.5kw frequency control
hot air fan	4kw×6pcs=24kw
Cold air fan	2.2kw×1pc =2.2kw
Radiator	6 units L 2000mm×W 300mm×H 900mm
Transmission speed	1-30m/min
Heating Medium	steam or thermal oil
Drying temperature	150-180℃
Thermal energy consumption	60 X104 Kcal Steam 1T
Drying Thickness	0.18-0.24mm
Initial moisture content	60-80%
Final moisture content	12%
Drying capacity	0.6--1m³
Mesh belt material	Stainless steel infrared photoelectric off tracking
Mesh dimension	Length 90m X Width 2.7m
Mesh	20mm×25mm
Roller diameter	89mm
Roller Space	1000mm
Roller Quantity	65pcs
Air Pipe	Length 3100 X Width 380 X Height 120mm (1mm thickness)
Air Pipe quantity	80 pcs
Overall Dimension	L 23m(feeding1.5m+drying and cooling 20m+discharge 1.5m)×W 4.36m×H 2.2m
Container	1X40’HQ around 23000kg

Exhibitions and Customer Visits

Exhibition

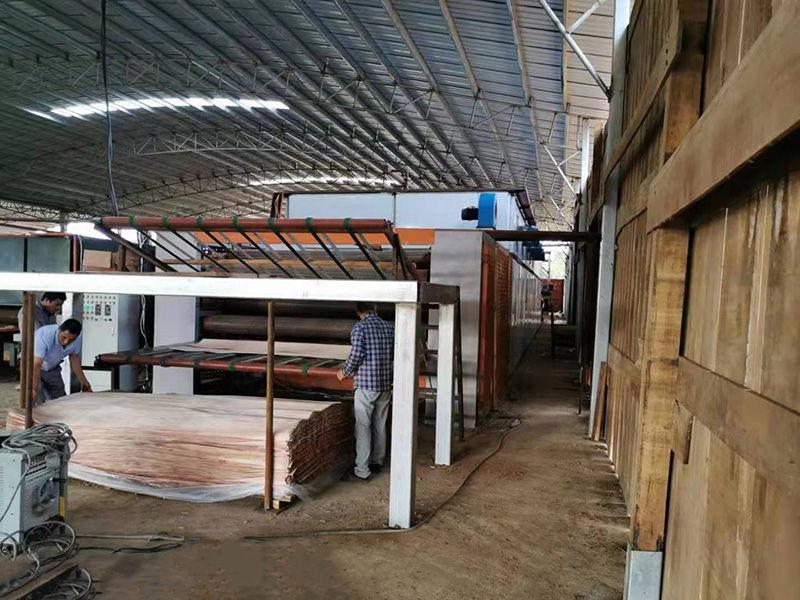

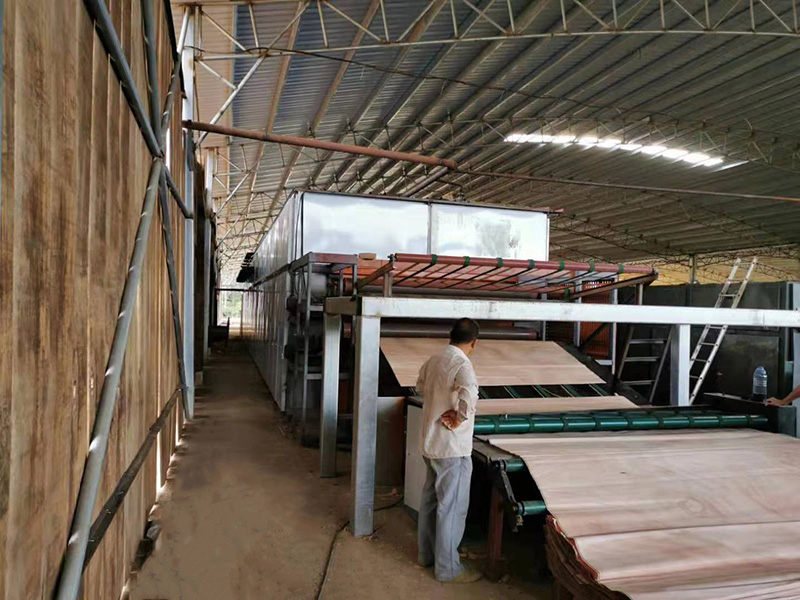

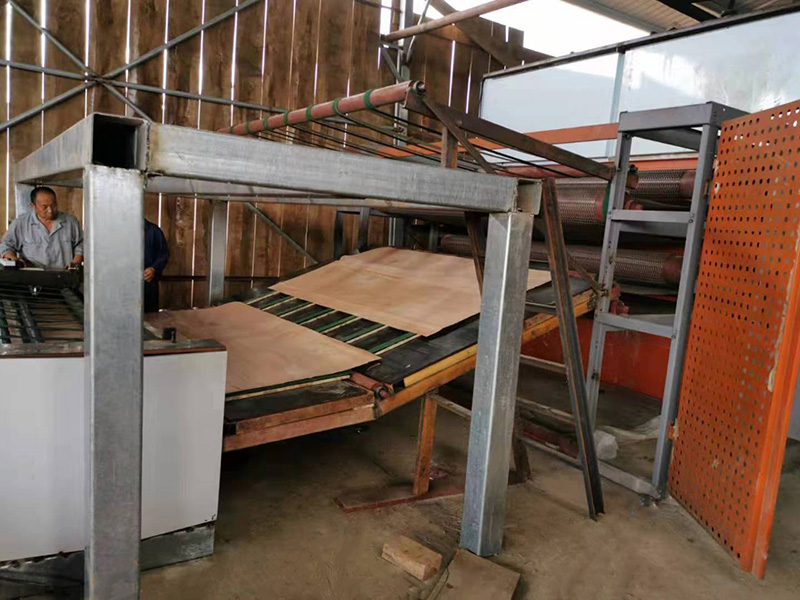

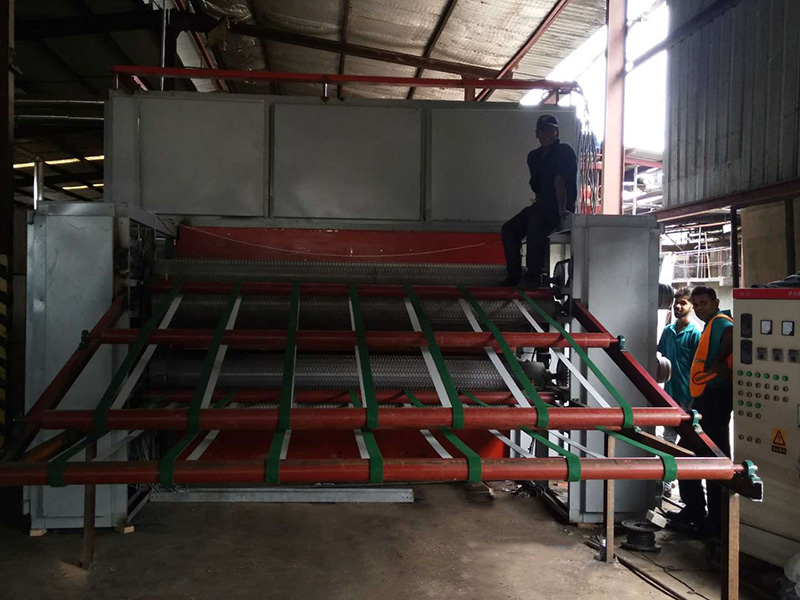

Customer visit pictures
