Automatic Hot Roller Press Machine For Laminates

Meticulous design, uniform heat conduction, high-precision mechanically processed parts, wide range of process parameters adjustment control process, reasonable design to meet various plywood production process requirements.

  Contact Now
Product Details

Automatic Hot Roller Press Machine For Laminates

Plywood hot press machine can press veneers together with high temperature.Which is used in furniture and artificial board secondary operation. Manual and automatic controls make the hydraulic press faster, more precise, and more convenient for international customers to use.Our hot press is equipped with a microcomputer control system for both manual and automatic control. With a simple push of a button you can control a whole set of processes including pressing plate ascending, closing, pressure adding, pressure maintaining, timing and pressing plate descending.

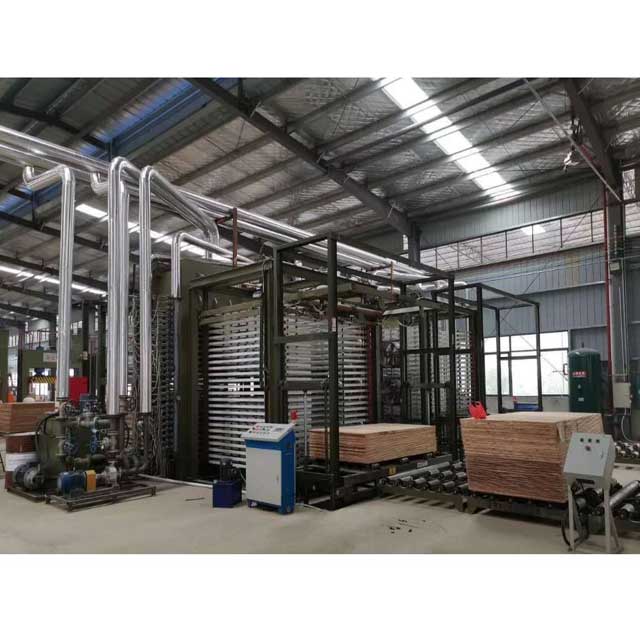

Hot Press Machine

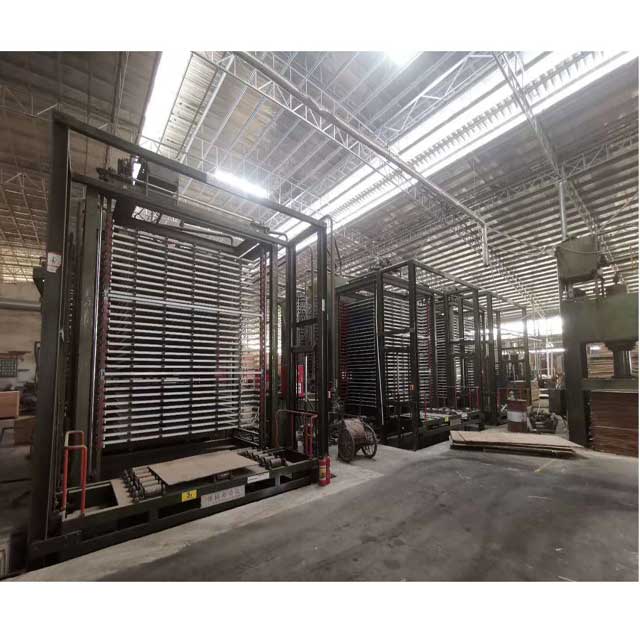

Hot Press Machine

Product parameters

Total pressure

500tons

Board feeding direction

From the long side

Pressure

0-25mpa

Hot Press Plate Size

2700*1370*40mm double inlet and outlet

Cylinder diameter and stroke

Φ360x2, 1050mm

Frame

Bolt connected

Layer number

15 layers

Layer space

70mm

hot press plate number

16

total power

20.5kw

oil cylinder

origin in Wuxi

power

380v 20.5kw 50hz

upper/lower/middle beam

900mm/900mm/400mm

Frame thickness

main body: 35mm, Q235

Hydraulic system

automatic hydraulic

Weight

32 tons
