Hydraulic Hot Roller Press Machine

Meticulous design, uniform heat conduction, high-precision mechanically processed parts, wide range of process parameters adjustment control process, reasonable design to meet various plywood production process requirements.

  Contact Now
Product Details

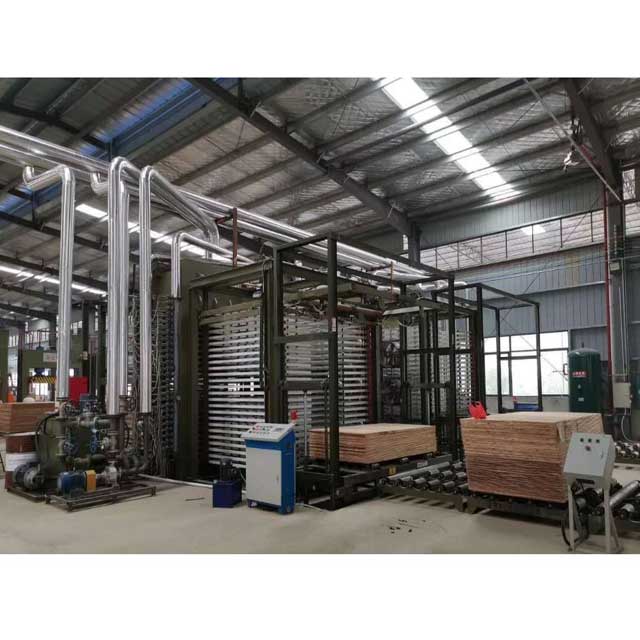

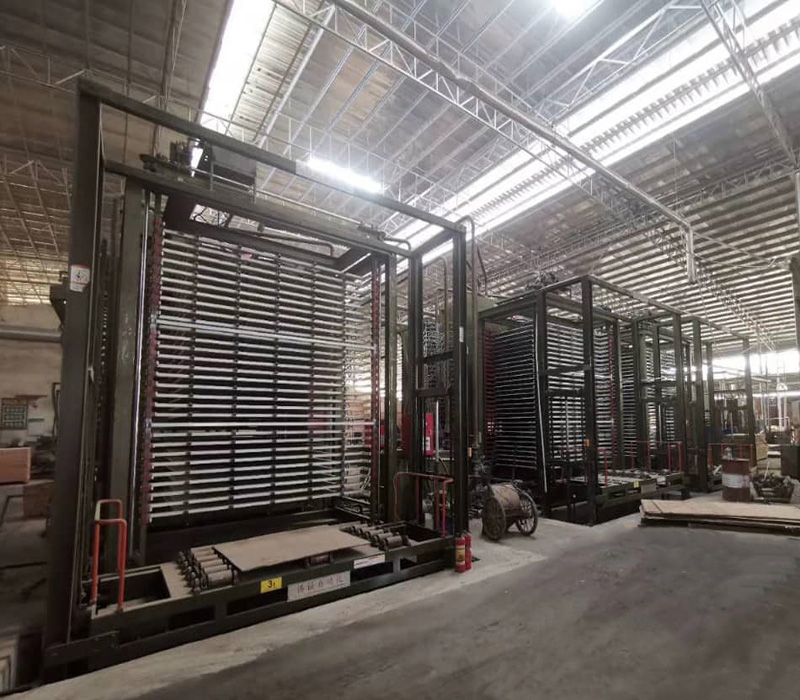

Hydraulic Hot Roller Press Machine

Plywood hot press machine is used for the final formulation of plywood, it is the most important machine in plywood production. Hot press machine is one of the most important machines in plywood production. It determines production efficiency and the quality of final products. Hot pressing system, heating system, heat conduction system, low heat consumption, meticulous design, uniform heat conduction, high-precision mechanically processed parts, wide range of process parameters adjustment control process, reasonable design to meet various plywood production process requirements.

Hot Press Machine

Hot Press Machine

Product parameters

Total pressure

500tons

Board feeding direction

From the long side

Pressure

0-25mpa

Hot Press Plate Size

2700*1370*40mm double inlet and outlet

Cylinder diameter and stroke

Φ360x2, 1050mm

Frame

Bolt connected

Layer number

15 layers

Layer space

70mm

hot press plate number

16

total power

20.5kw

oil cylinder

origin in Wuxi

power

380v 20.5kw 50hz

upper/lower/middle beam

900mm/900mm/400mm

Frame thickness

main body: 35mm, Q235

Hydraulic system

automatic hydraulic

Weight

32 tons
