Automatic Veneer Dryer

The veneer dryer adopts step-by-step heat exchange technology to ensure that the veneer is evenly heated and has excellent drying effect.

It adopts fully automatic control and frequency conversion control system, which can automatically adjust the transmission speed and temperature according to the thickness and moisture content of the veneer to improve production efficiency. It can be customized to provide veneer drying solutions according to actual conditions.

If you want to know more details about the machine (performance, detailed parameters, videos, etc.), please contact us.

Contact Now

Product Details

Automatic Veneer Dryer

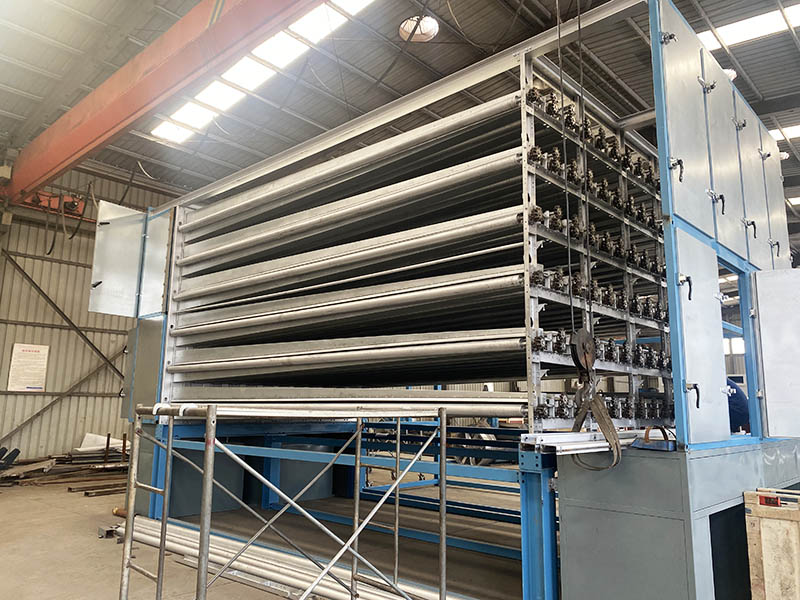

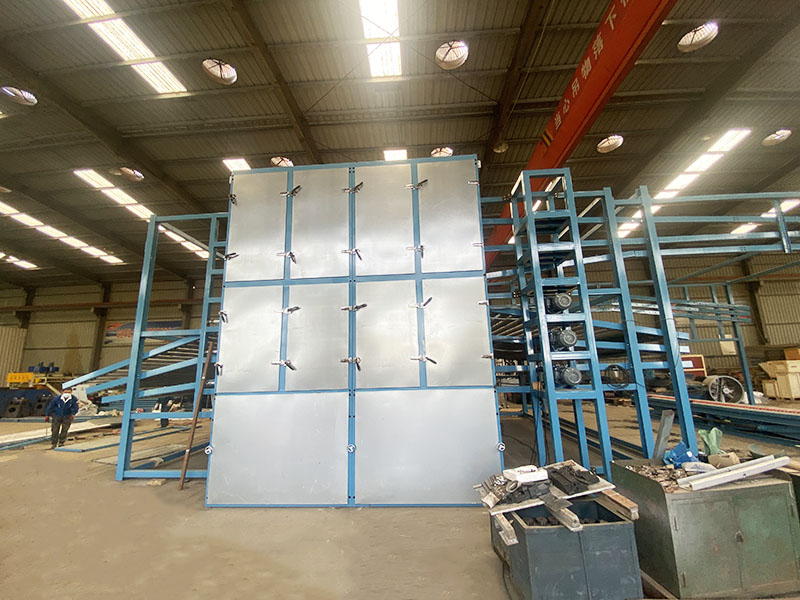

The drying machine consists of six layers of conveyor rollers, with each roller transporting veneers through upper and lower pressure rollers to ensure obstruction-free veneer conveyance, thus ensuring continuous equipment operation. The operating speed of the equipment is controlled by variable frequency within the range of 5-22 meters (adjustable as needed).

The veneer drying process comprises two parts: blowing heating conducted by air ducts and upper and lower pressure roller contact heating, with dual heating enhancing heating efficiency.

Automatic Veneer Dryer.jpg

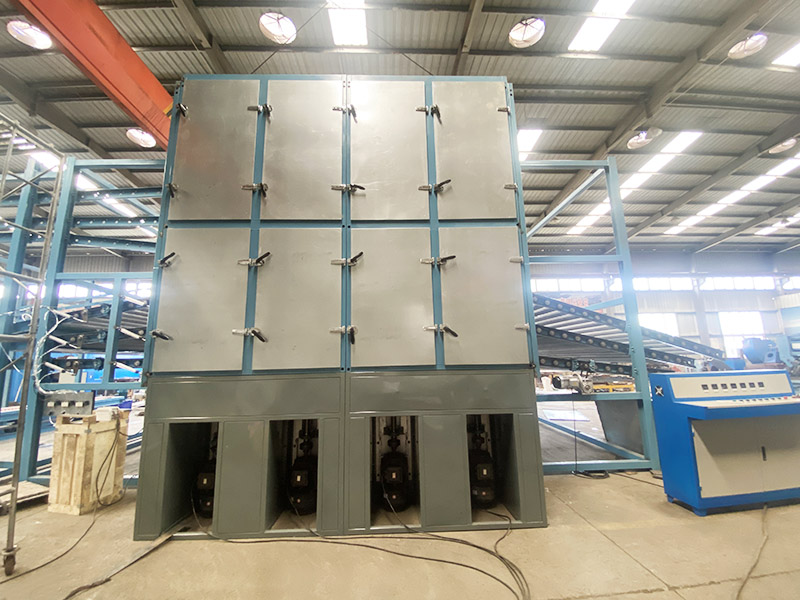

The drying temperature adjustable within the range of 160-180°C and temperature control precision of ±5°C. High-temperature type temperature and humidity sensors are installed in each section of the dryer, The collected temperature and humidity signals are automatically processed to achieve automatic adjustment of drying temperature and relative humidity. Upper limits of temperature and humidity can be freely set, and real-time collection and historical recording of temperature and humidity signals are maintained.

Automatic Veneer Dryer.jpg

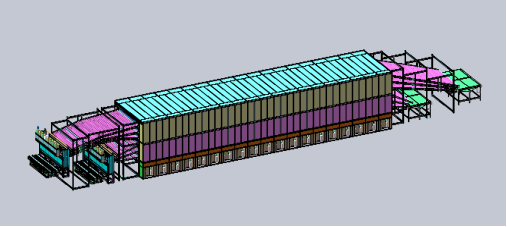

Automatic veneer feeding reduces the probability of veneer misalignment caused by manual feeding, ensuring smooth and stable movement of single boards inside the dryer, thus avoiding potential blockage risks. Additionally, it significantly reduces manual labor and intensity, thereby improving production efficiency.

Automatic Veneer Dryer.png

Product Parameters of Automatic Veneer Dryer

Model	GTH612-42
Deck	6
Working Width（M）	6120mm
Moisture Content(%)	Fresh Veneers to within 12%
Drying (℃)	160-180℃ adjustable. (Equipped with an integrated automatic temperature and speed control system to ensure consistent moisture content of the products.)
Drying Capacity（M³/H）	15-18m3/hour
Veneer Speed(M/MIN)	5-22m/min，16A Chain
Power of Hot Air Fan (KW)	2pcs×15KW×18section=540KW
Power of Traction Motor(KW)	XWD6 Reducer Frequency Control 7.5KW × 6set=45KW
Power of Cold Air Fan(KW)	2pcs×15KW×3section=90KW
Power of Dehumidifying Fan（KW)	5.5KW×1pc=5.5KW
Total Power	680.5KW
Power Consumption	About 410kwh
Overall Dimension	65453 X 22080 X 5500 mm

Automatic Veneer Dryer.jpg

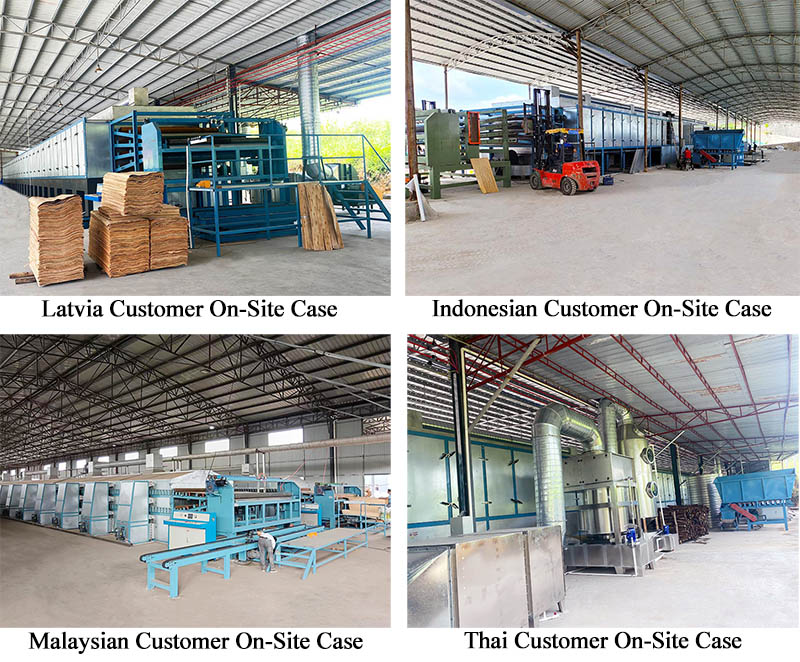

Customer Case

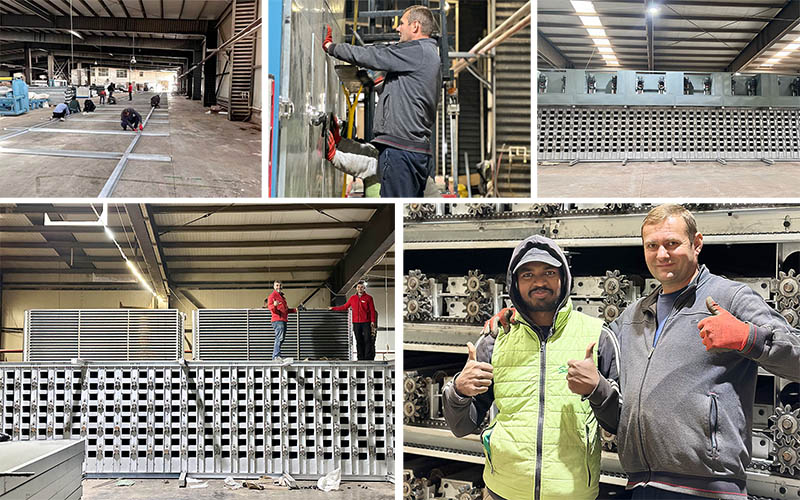

The installation

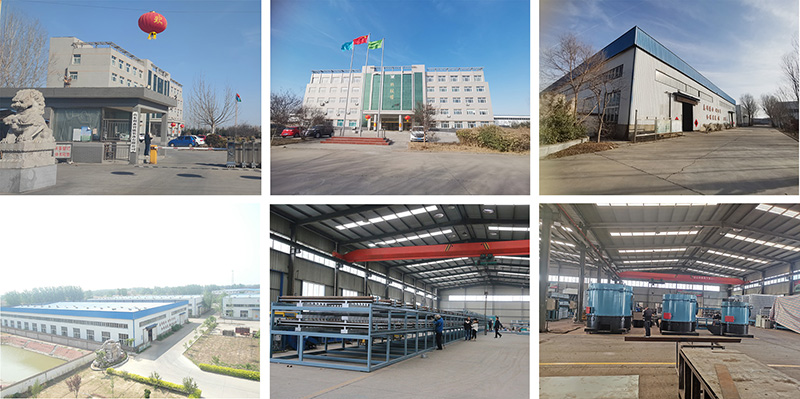

The Factory

Packaging & Shipping

Packaging & Shipping.jpg
