Conveyor Plywood Core Veneer Drying Machine

Biomass veneer dryer is widely valued for the lowest operation cost, high drying capacity, and energy-efficient as well as high-quality veneer output. It is meant for drying the Core Veneer & Face Veneer and is the Dryer of choice all over the country as well as abroad.

Contact Now

Product Details

Conveyor Plywood Core Veneer Drying Machine

A Roller veneer dryer is one of the very important machines in making plywood. The veneer roller dryer machine is especially for drying core veneer thickness 0.6-8mm. Roller veneer drying machine has an advanced heat exchanging structure with features of high heat exchange efficiency and low heat loss. The core veneer dryer can be heated by a steam boiler, thermal oil heater, or biomass burner which can save the fuel cost the most. The composite drying cost using biomass burner heated roller dryer is about only USD 10 per cubic meter including the labor cost, fuel cost, and electricity.

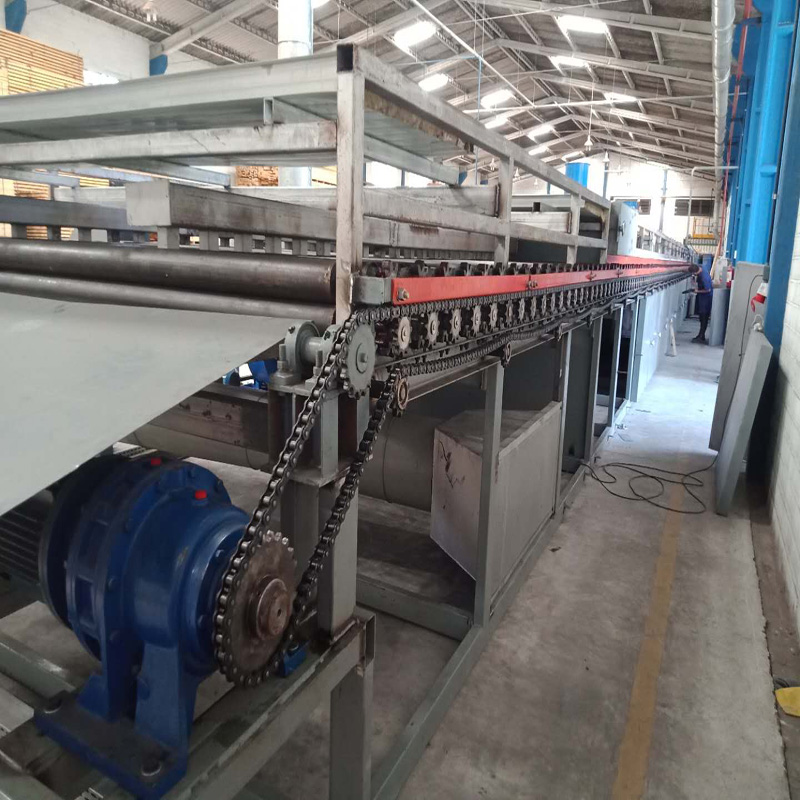

veneer dryer machine

Parameter Model	DHS20M	DHS24M	DHS28M	DHS32M	DHS36M	DHS40M
Work width（m）	3	3	3	3	3	3
Deck	1	1	1	1	1	1
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	16	20	24	28	32	36
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	0.5-0.65	0.65-0.8	0.8-1	1-1.2	1.15-1.35	1.3-1.5
Heat exhaustion（10000 kcal）	17.5-23	23-28.5	28-35	35-42	40.25-47.25	45.5-52.5
Total power (kw)	45	50	58	65	73	80
Overall size LxW（m）	25*4.5	29*4.5	33*4.5	37*4.5	41*4.5	45*4.5

Advantages of Veneer Dryer Machine

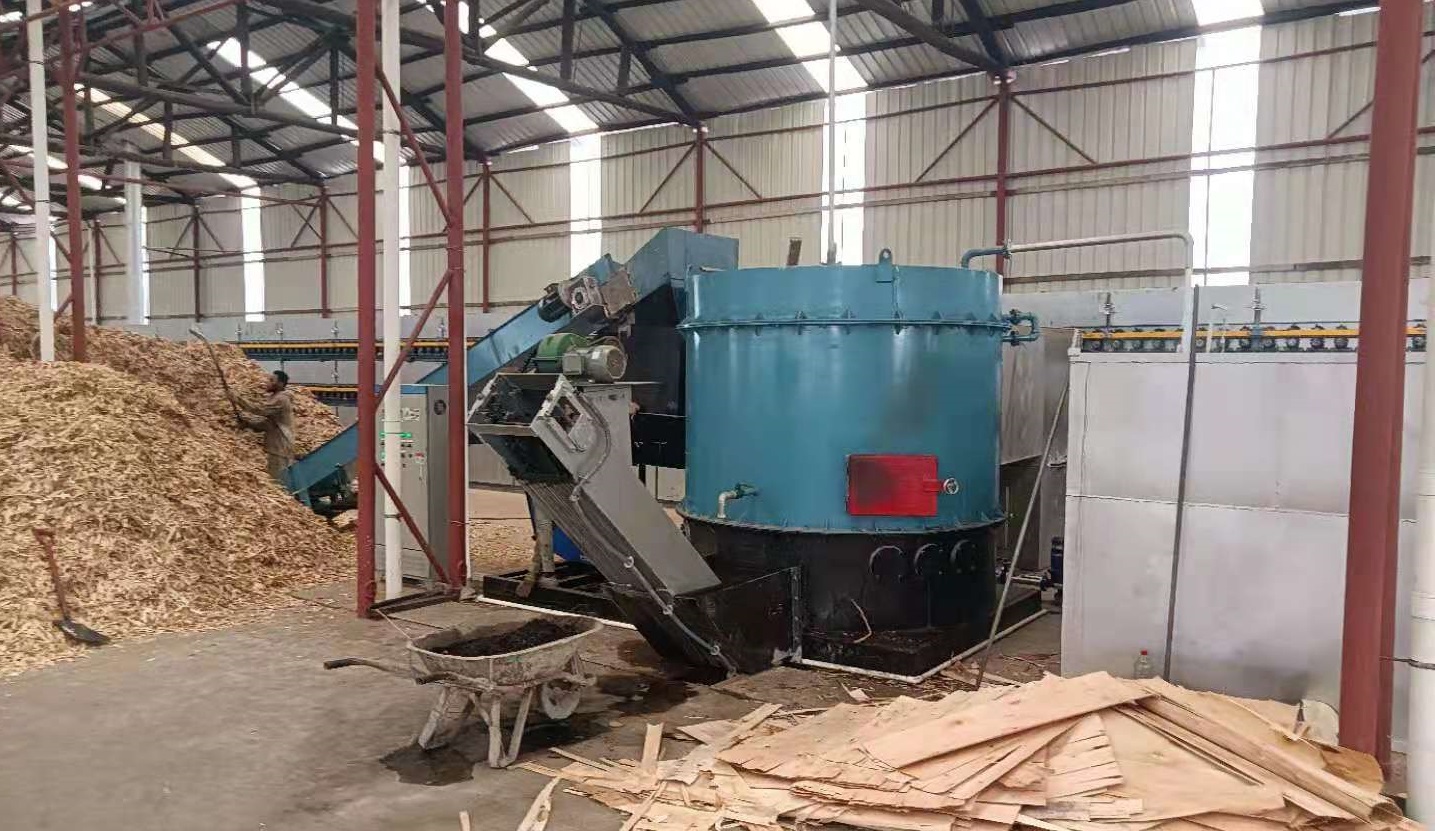

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

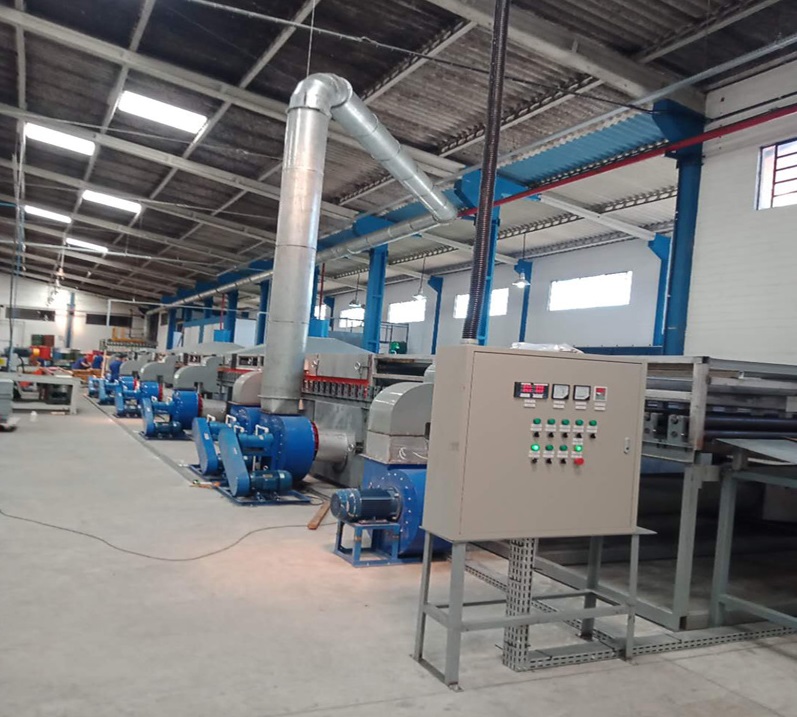

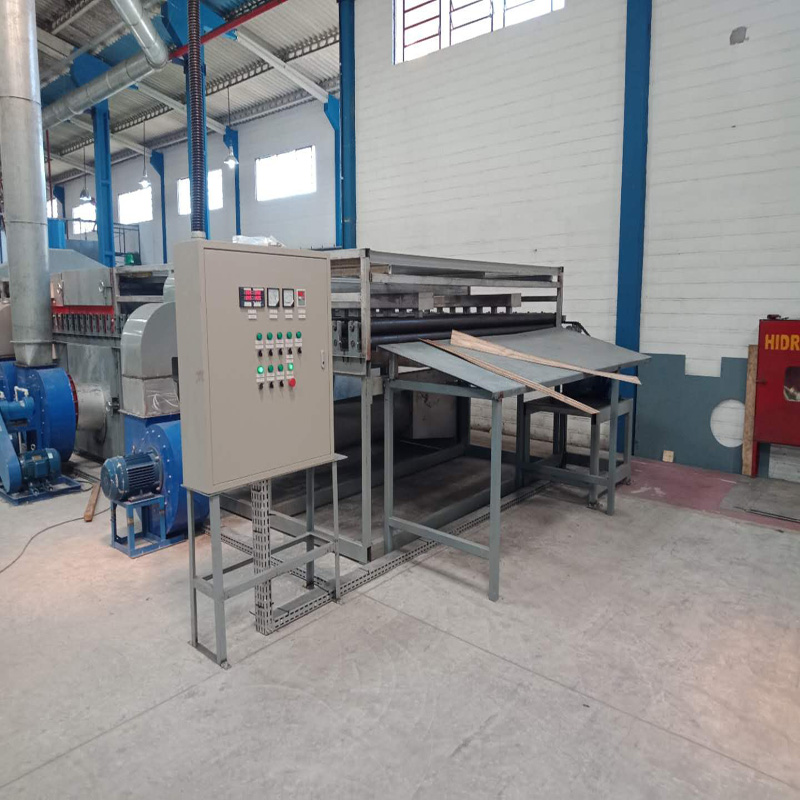

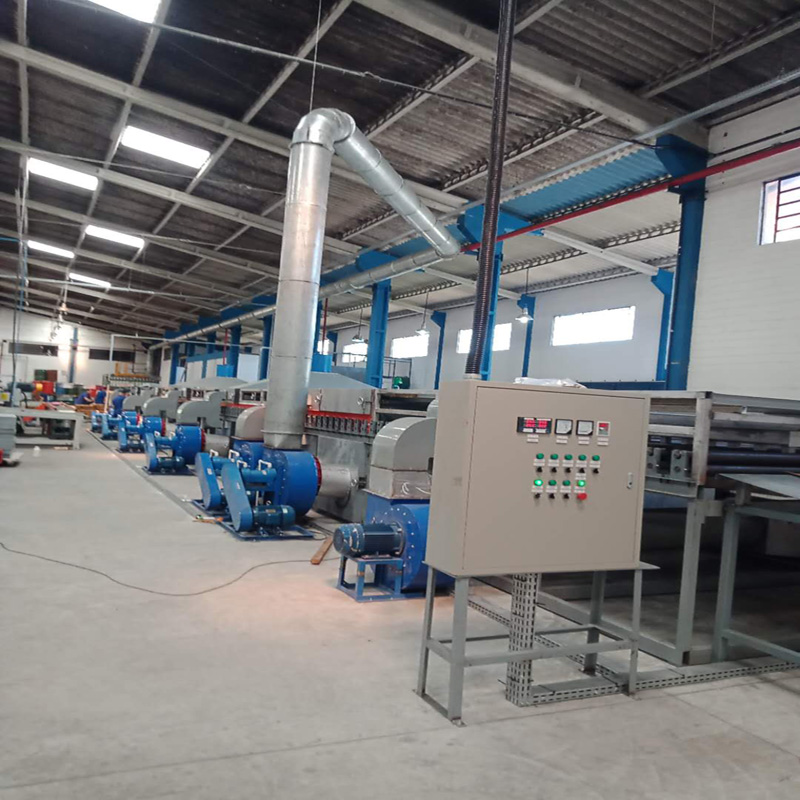

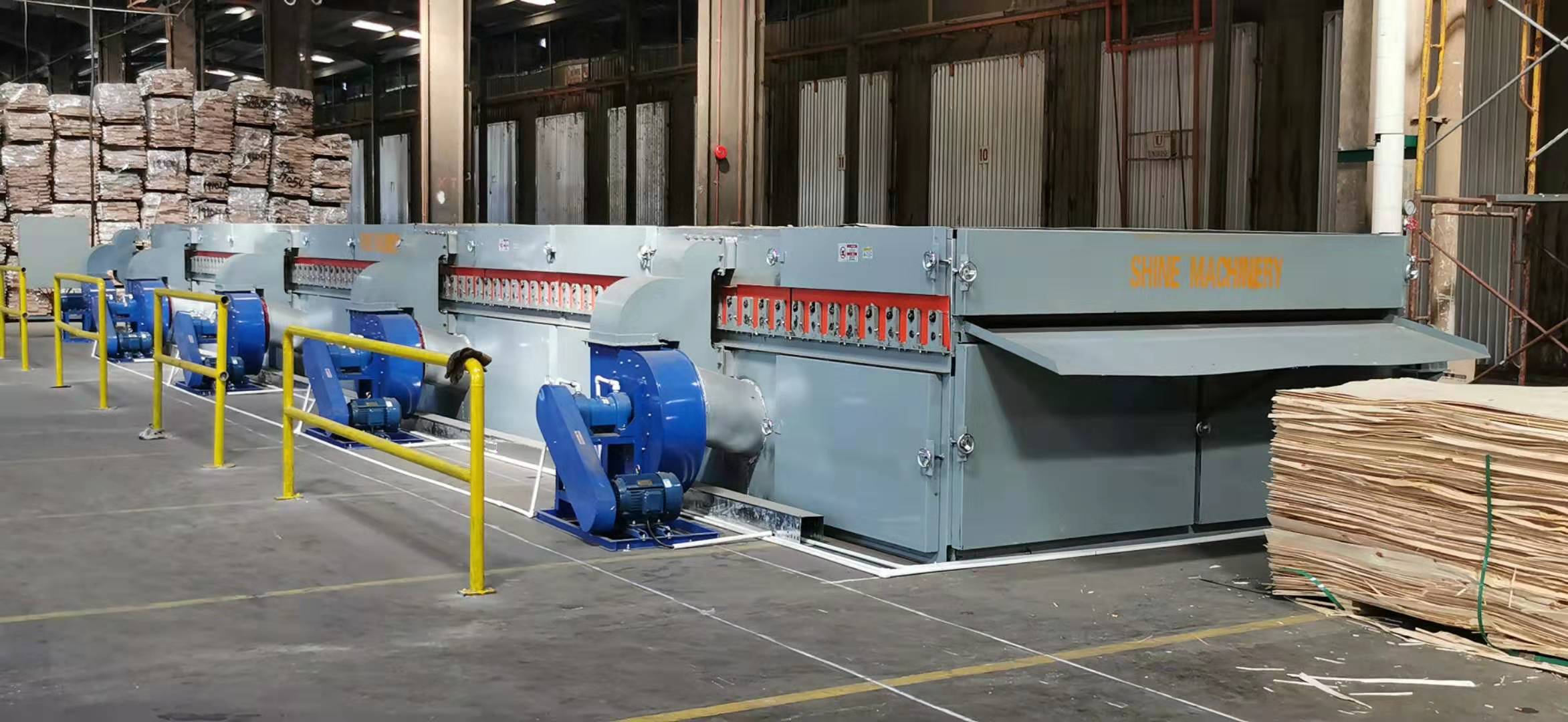

Customer Case
