Core Veneer Dryer Machine Supplies For Sale

Shine heat exchanger adopts step by step heat transfer, and the specifications of each section of the heat exchanger are different, and the hot air in the heat exchanger can be uniformly emitted to the veneer. The veneer after drying has uniform moisture content, flat, no buckle or end waviness; free of splits and the surface is in good condition for gluing.

Contact Now

Product Details

Core Veneer Dryer Machine Supplies For Sale

Roller Veneer Dryer is continuous roller veneer dryer for core veneer and face veneer. After veneers are peeled from fresh logs by the peeling machine, the veneer dryer is responsible for reducing the moisture content to a proper condition before gluing for plywood making. The working width and working length of the wood veneer drying machine can be customized according to the specific drying capacity requirement needed by the different customers.

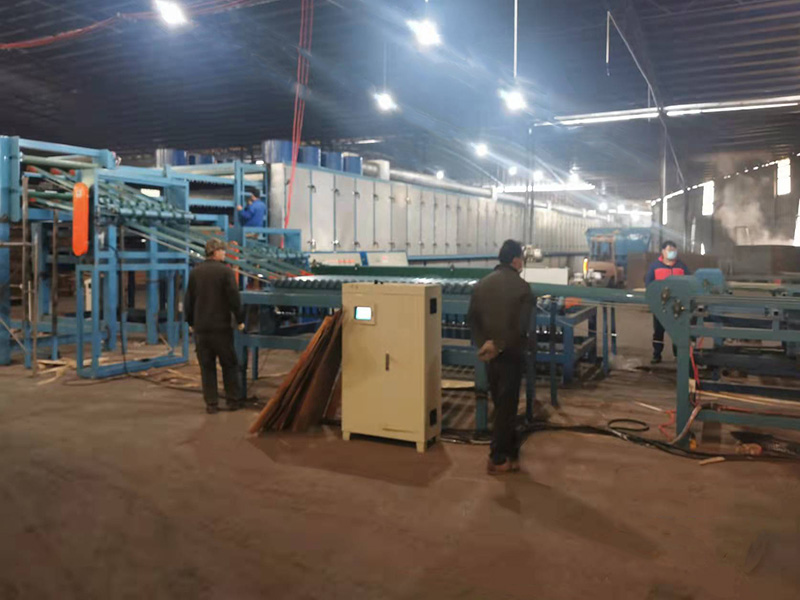

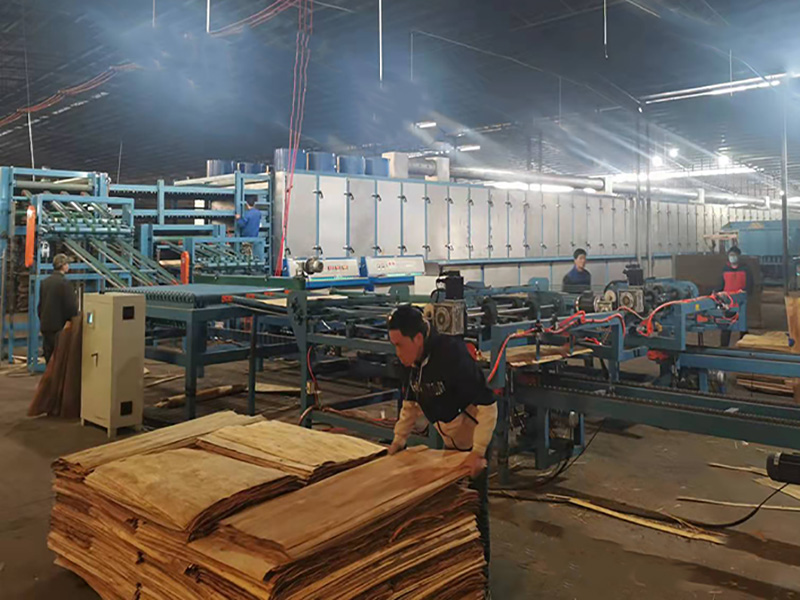

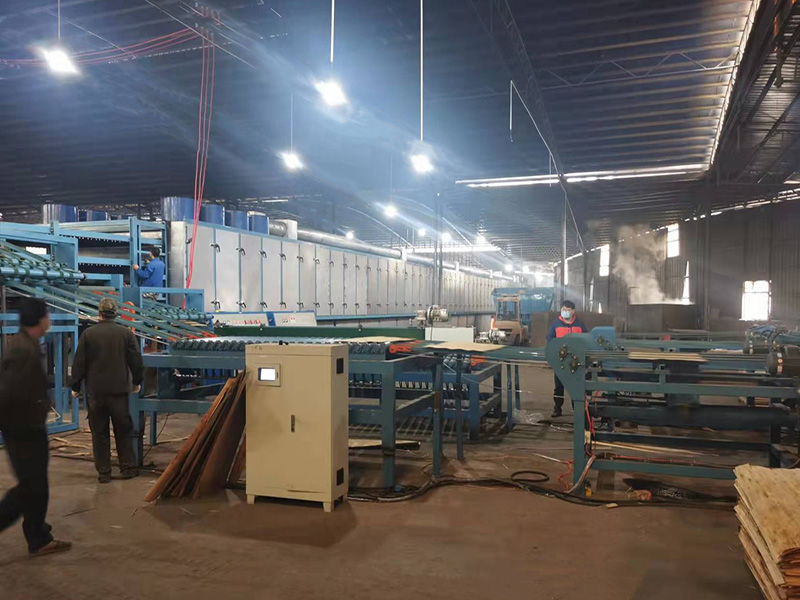

Veneer Dryer

veneer dryer machine

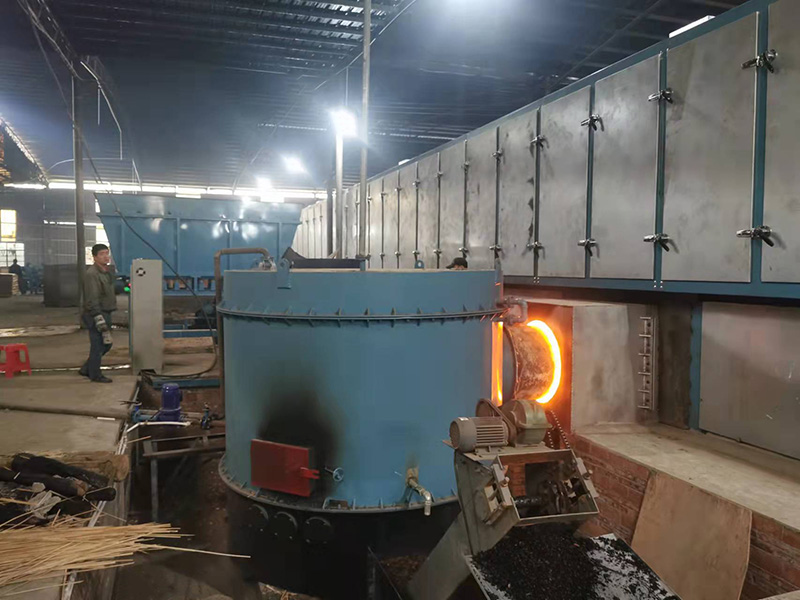

Biomass burner

Advantages of Veneer Dryer Machine

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

Parameter Model	DHS20M	DHS22M	DHS24M	DHS26M	DHS28M	DHS30M
Work width（m）	3	3	3	3	3	3
Deck	4	4	4	4	4	4
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	16	18	20	22	24	26
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	About 3	About 3.3	About 3.6	About 4	About 4.4	About 4.8
Heat exhaustion（10000 kcal/h）	About 105	About115	About126	About140	About 154	About168
Total power (kw) about	105	110	115	120	125	130
Overall size LxW（m）	31*5.5	33*5.5	35*5.5	37*5.5	39*5.5	41.*5.5

Customer Case

Customer Case

Exhibitions and customer visits

Exhibition

Customer visit pictures

Our Services

Pre-sale services:

1) Provide the free consultation of all Core Veneer Dryer Machine

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

4) Door to door service is possible

Product Packaging

Send your message to us

Related Products

Shine Machinery is a large manufacturer specializing in the development of wood veneer dryer and veneer sheet peeling equipment. Provide one-stop veneer production solutions with rich experience, technological innovation and after-sales guarantee.
