Plywood Core Veneer Drying Line

The biomass burner is Shine patented product. It can burn all kinds of waste wood directly to reduce the drying cost mostly. Compared to steam type or heat conduction oil type veneer dryer, the drying cost is reduced greatly.

Contact Now

Product Details

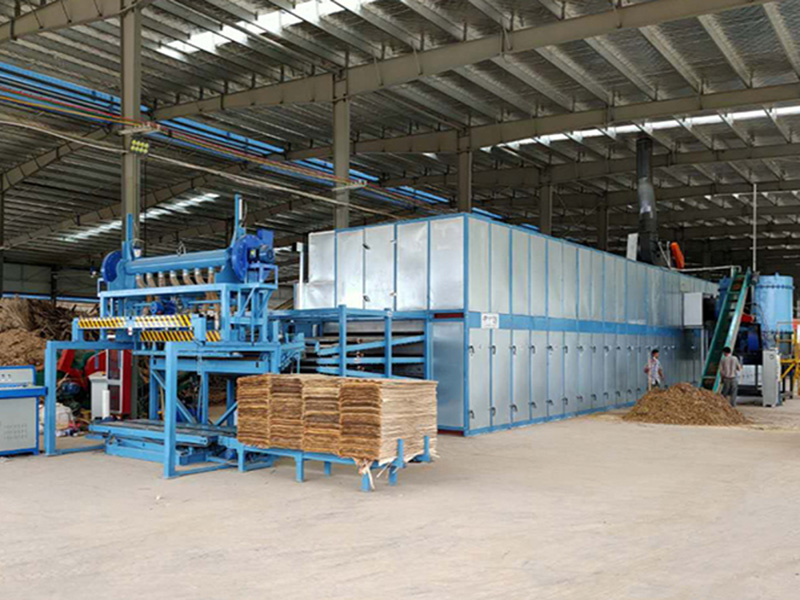

Plywood Core Veneer Drying Line

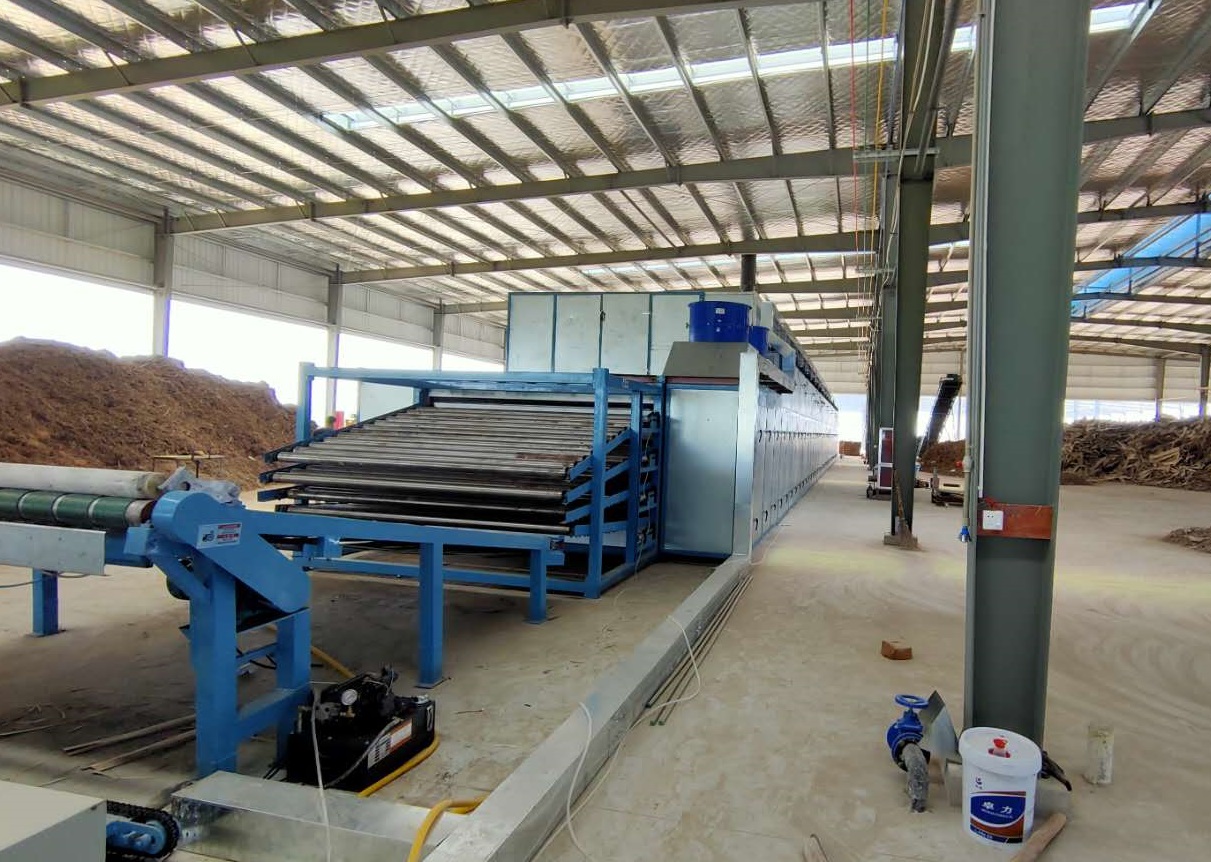

4 deck veneer roller dryer is our main product for high-end customers to meet the higher capacity requirements of customers, which has the salient features of higher drying capacity. The rollers use φ102 steel special shaft tube. The bearings of the 4 deck veneer dryer are featured high temperature 500 degree Celsius resistance and low temperature -20 degree Celsius resistance which no need injecting oil and easy maintenance in the daily operation.

veneer dryer

Advantages of Veneer Dryer Machine

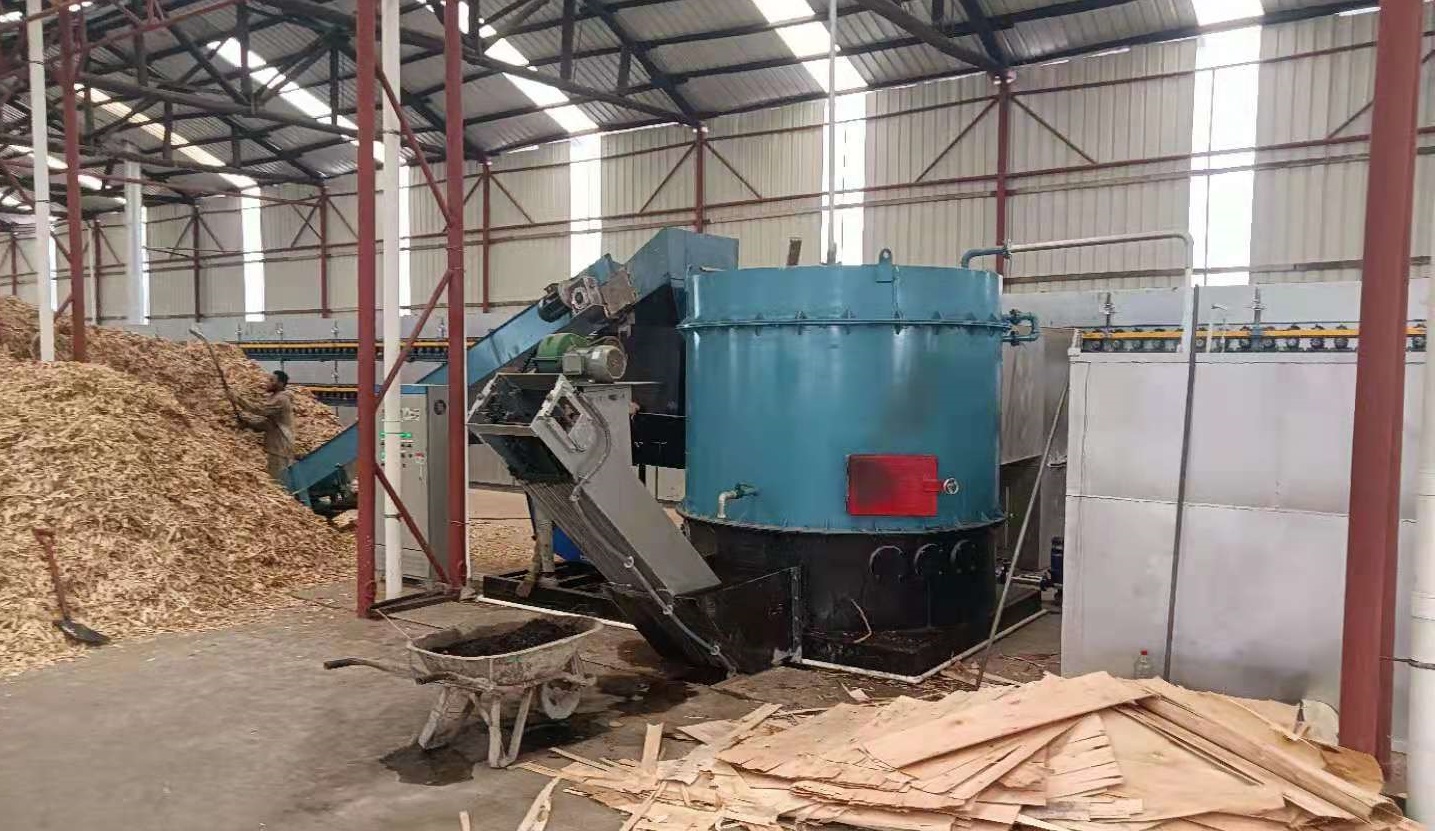

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

Parameter Model	DHS32M	DHS34M	DHS36M	DHS38M	DHS40M	DHS42M
Work width（m）	3	3	3	3	3	3
Deck	4	4	4	4	4	4
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	28	30	32	34	36	38
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	About 5	About 5.5	About 5.8	About 6.2	About 6.6	About 7
Heat exhaustion（10000 kcal/h）	About 175	About192	About203	About217	About231	About245
Total power (kw) about	135	140	145	150	155	160
Overall size LxW（m）	43*5.5	45*5.5	47*5.5	49*5.5	51*5.5	53.*5.5

Customer Case

Customer Case

Exhibitions and Customer Visits

Exhibition

Customer visit pictures
