Core Veneer Roller Dryer Machine Price

The biomass burner is Shine patented product. It can burn all kinds of waste wood directly to reduce the drying cost mostly. Compared to steam type or heat conduction oil type veneer dryer, the drying cost is reduced greatly.

Contact Now

Product Details

Core Veneer Roller Dryer Machine Price

Veneer Dryer is renowed for consistently producting and high quality veneer with a uniform dry moisture content.Veneer Drying Machine offer the highest efficiency,save energy,reduce cost and environmental friendly.By adopting latest international pressure contact veneer drying technology. Roller veneer dryer has the advantages of simple operation, safety and practicality,stable operation and easy maintenance.Integrated design of the veneer dryer can greatly improve the utilization rate of the space occupied. The veneer enterprises can do the drying all the times ,which can avoid the wet veneer deterioration due to climate,improve the drying effect.We have professional research team that can design different type Plywood Veneer Dryer accroding to customers requirements.

veneer dryer machine

Advantages of Veneer Dryer Machine

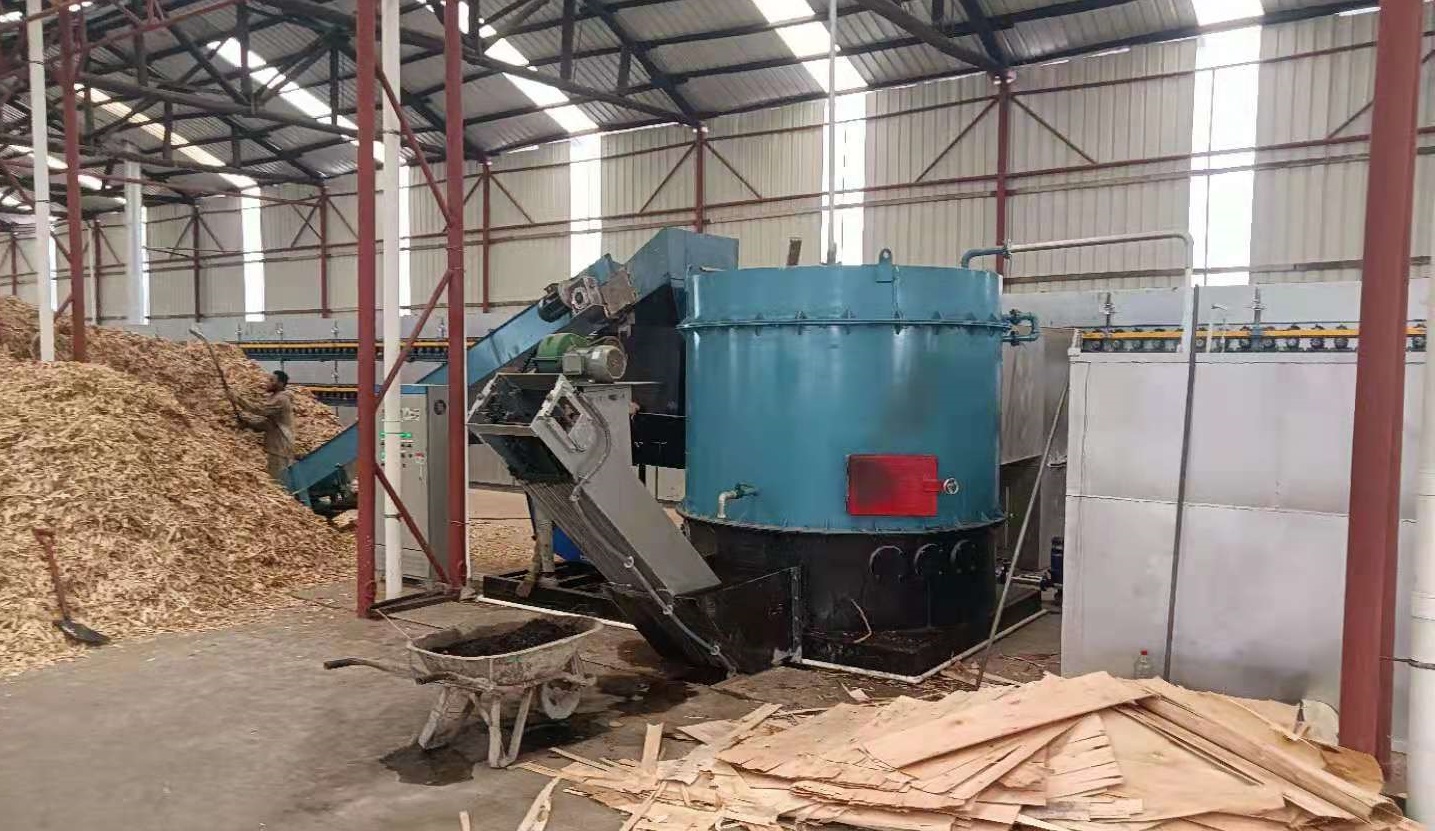

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

Parameter Model	DHS44M	DHS48M	DHS52M	DHS56M	DHS60M
Work width（m）	3	3	3	3	3
Deck	1	1	1	1	1
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	40	44	48	52	56
Cooling area (m)	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10
Drying capacity (m³/h)	1.5-1.7	1.65-1.8	1.7-1.9	1.8-2	1.9-2.2
Heat exhaustion（10000 kcal）	52.5-59.5	57.75-63	59.5-66.5	63-70	66.5-77
Total power (kw) about	90	97	105	112.5	123
Overall size LxW（m）	49*4.5	53*4.5	57*4.5	61*4.5	65*4.5

Customer Case

Customer Case

Exhibitions and Customer Visits

Exhibition

Customer visit pictures

Send your message to us

Related Products

Shine Machinery is a large manufacturer specializing in the development of wood veneer dryer and veneer sheet peeling equipment. Provide one-stop veneer production solutions with rich experience, technological innovation and after-sales guarantee.
