4.5m width 4 deck 40m length roller veneer dryer

4 deck roller veneer dryer can be custimzed width and length as your detailed requirements, and we can design the layout plan according to your plant.We can provide the best proposal for you.

Roller veneer dryer is one of the main machines in plywood production line and used to dry the core veneer peeled by veneer peeling machine line.

Shine veneer dryer has the features of high productivity, energy efficiency, lowest drying cost and perfect drying effect,can help you save the cost.

We have perfect after-sale service system, which can supply 7x24 hours online service; remote operation is available on request, regular customer visits, sufficient spare parts supply in time . Fully solve the worries of customers.

Contact Now

Product Details

4 deck roller veneer dryer for hot sale can be cusomized

Product Video

Product Description

Wood core veneer dryer machine is a roller dryer. The machine is composed of four parts. It is divided into feeding area, heating area, cooling area and discharge area as shown in the figure.

Main Features

Drying system:
Hot-air curtain style:
In this type, the air is circulated in (direct)direction, radiator adopt steel aluminum alloy sheets, is heated with steam and oil the hot-air immit into the top and bottom bellows by acentrical fan, and injected with high speed into both sides of the veneers. The veneers are dried uniformly.

Driving system:
The drum type: the veneer feed lengthwise, top and bottom rollers are driven by the chain, the veneer advance pressed by the top roller weight. The veneer is dried when come through the rollers and air nozzle with flat smooth surface.

Control system:
According to the users' requirement, we have manual operation, step less speed change, automatic computer controlling system, the speed can be adjusted when different thickness and different moisture of the veneer is dried.

Structure selection:
The contour structure is metal material (iron plate, aluminum plate, stainless steel ect.) asbestos keep temperature with brick body, we can produce according to your requirement and also remake the old machines.

Heating source system:
You can choose the heating systems according to your conditions and environments such as hot air stove, steam stove, oil stove

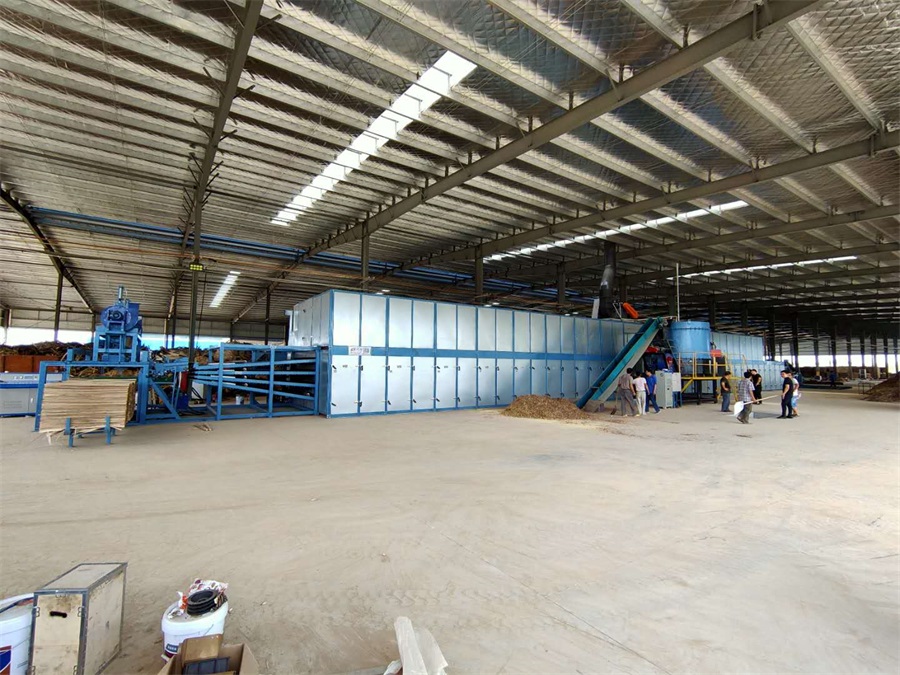

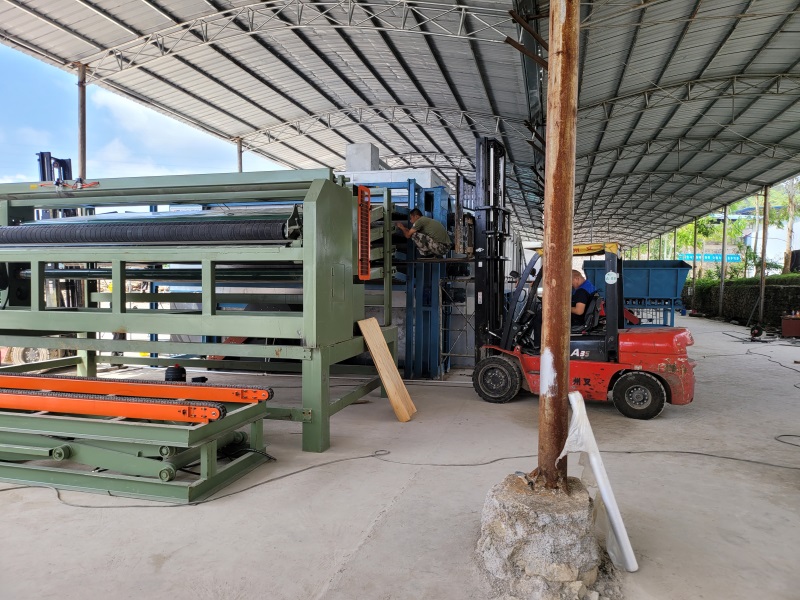

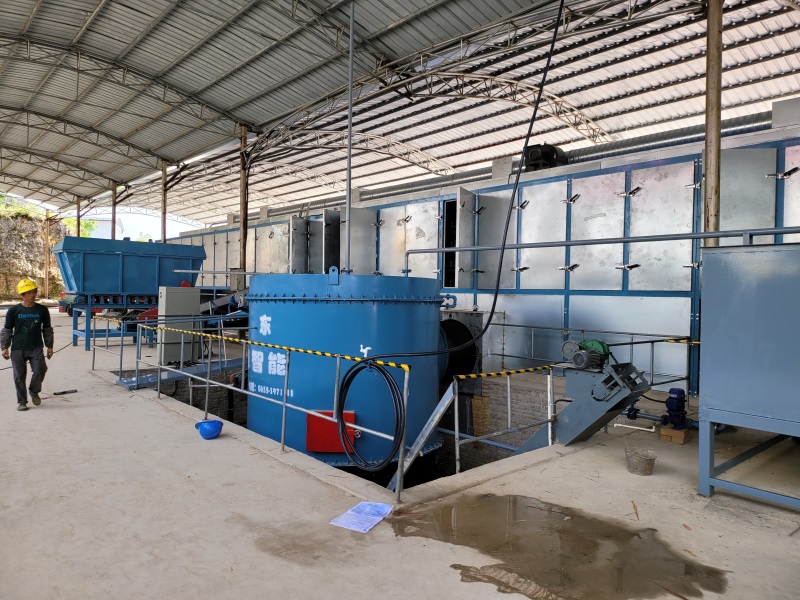

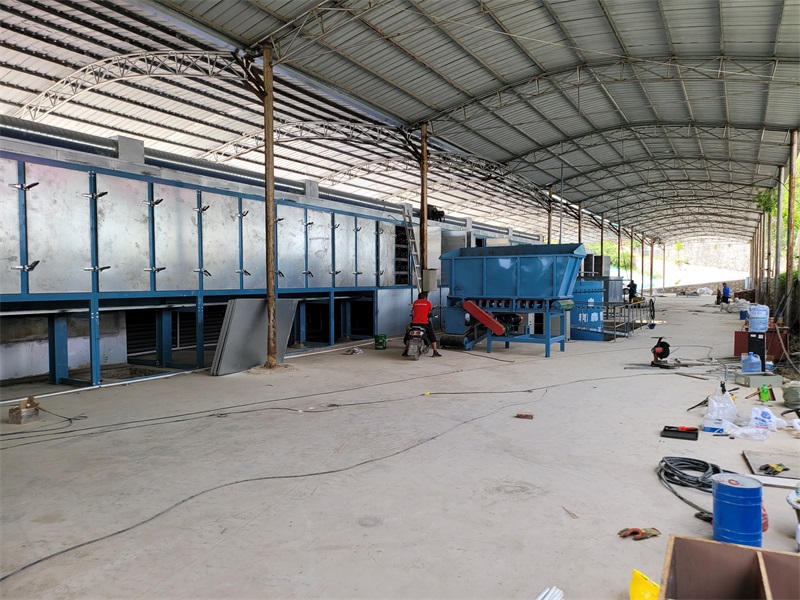

Product Picture

four deck veneer dryer.jpg

Main Parameter

Item	Shine44m	Shine48m	Shine52m	Shine56m	Shine60m
Working width (m)	3	3	3	3	3
Thickness(mm)	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area (m)	40	44	48	52	56
Cooling area (m)	4	4	4	4	4
Fresh Veneer Moisture(%)	50-80	50-80	50-80	50-80	50-80
Drying Veneer Moisture (%)	≤10	≤10	≤10	≤10	≤10
Capacity (m³/h)	0.5-10	0.5-10	0.5-10	0.5-10	0.5-10
Total power (kw)	154	169	180	198	209
Overall size LWH (m)	444.52.27	484.52.27	524.52.27	564.52.27	604.52.27

and the paramether and configuration can be customized as your requirements.

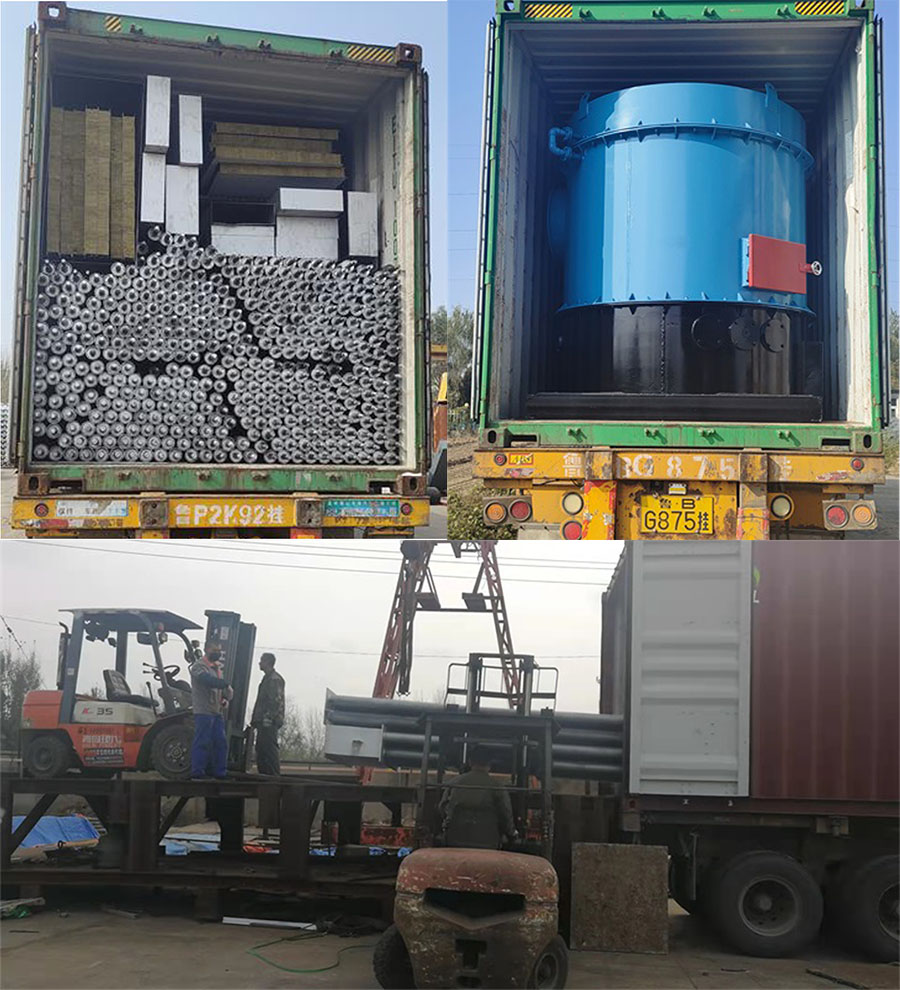

Packaging & Shipping

Package: The normal package for machine is containers,nude package,but the spare parts is wooden box.If export to

European countries,we will use PE film for packing it or according to your requests.

Shipping: We will ship the products in 30 days after payment.

Workshop&Customers' visiting

Presale service

Ⅰ.Make reliable pratical mechine list and production proposal free of charge, according to customers' actual situation

Ⅱ.Design the machine free of charge, according to customer's production line and production cost,

Ⅲ. Make the workshop and production line layout free of charge, according to customers' factory land

Medium-sales service
Ⅰ.Video for the manufacturing process as customers requirement

Ⅱ.Machine modifying according customers' suggestion

Ⅲ.Order the shipment and prepare the documents for customers' clearance, according to customers' custom requirement

After-sale service
Ⅰ.One year warranty for main machine, cost price for vunerable parts

Ⅱ.Experienced engineer is avaiable for the machine installation and worker training

Ⅲ.Cooperate with Aliyun OS, remote control of trouble shoting and system upgrading

FAQ:

1. Can you customize products for clients?

Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.

2. How can we trust your factory?

We recommend that you come to our factory to see the goods, to verify the real situation of the products, and know more about our factory.

3.Why does the price often change?

The price depends on the latest prices of the raw materials.

4. What about the contract signing?

If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit. Then we’ll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

5. How about delivery?

When the product is ready, it can be delivered to you after your full payment. We’ll provide technical guidance.
