Roller Core Veneer Dryer Machine

Veneer Drying Machine offer the highest efficiency,save energy,reduce cost and environmental friendly. By adopting latest international pressure contact veneer drying technology. The hot air fan and the cold air fan of the dryer use the latest axial flow fan, which reduces the power consumption and greatly reduces the power of the whole machine.

Contact Now

Product Details

Roller Core Veneer Dryer Machine

Shine biomass Veneer Dryer is widely valued for the lowest operation cost, high drying capacity, and energy-efficient as well as high-quality veneer output. It is meant for drying the Core Veneer & Face Veneer and is the Dryer of choice all over the country as well as abroad. The composite drying cost of biomass veneer dryer is about USD 10/m3 including the labor cost, fuel cost and electricity power.

veneer dryer

veneer dryer machine

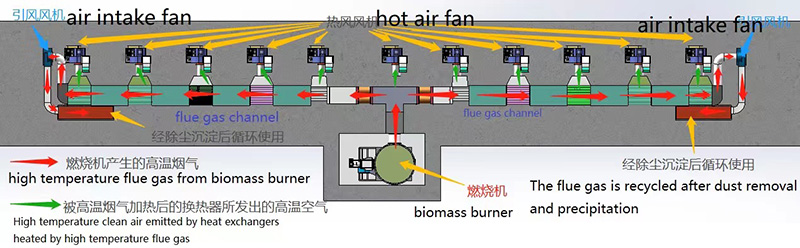

Shine heat exchanger adopts step by step heat transfer, and the specifications of each section of the heat exchanger are different, and the hot air in the heat exchanger can be uniformly emitted to the veneer. The veneer after drying has uniform moisture content, flat, no buckle or end waviness; free of splits and the surface is in good condition for gluing.

heat exchanger system

Main Features and Advantages of Roller Core Veneer Dryer Machine

1. The veneer after drying by Shine veneer dryer is smooth and the moisture content is uniform, and the high temperature drum has direct contact with the wet veneer for heat transfer, and the heat efficiency is high, the heat loss is small, and the heat loss is reduced. the selling price for veneer dried by roller veneer dryer is higher than natural drying.

2.The roller veneer drying machine adopts frequency conversion to adjust feed speed according to your veneer thickness and moisture content to achieve ideal drying effect .

3.Shine core veneer dryer or face veneer dryer convenient for transportation, quick installation, and can be put into use quickly and conveniently.

4.Standardized production models, can make different sections or decks according to different capacity requirements, which can meet different customers' requirements.

5.Each section with heat exchanger, which can make full use of the heat and achieve the best drying effect.

6. The fuel source can be the waste wood after peeling or the tree bark ,which can reduce the fuel cost greatly for the user.

veneer dryer

Product Parameters of Roller Core Veneer Dryer Machine

Parameter Model	DHS32M	DHS34M	DHS36M	DHS38M	DHS40M	DHS42M
Work width（m）	3	3	3	3	3	3
Deck	4	4	4	4	4	4
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	28	30	32	34	36	38
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	About 5	About 5.5	About 5.8	About 6.2	About 6.6	About 7
Heat exhaustion（10000 kcal/h）	About 175	About192	About203	About217	About231	About245
Total power (kw) about	135	140	145	150	155	160
Overall size LxW（m）	43*5.5	45*5.5	47*5.5	49*5.5	51*5.5	53.*5.5

Certification

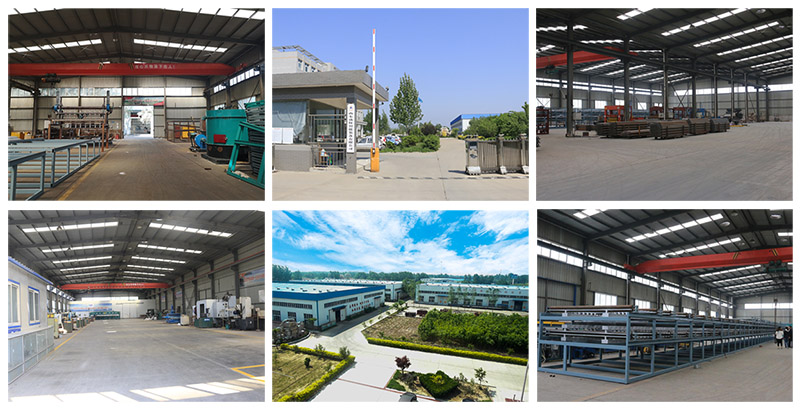

Our Factory

Our Services

Pre-sale services:

1) Provide the free consultation of all plywood veneer dryer

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging（Technical phone：++8615806625431）Door to door service is possible
