Wood Biomass Burner Veneer Drying Machine

Roller veneer dryer has the advantages of simple operation, safety and practicality, stable operation and easy maintenance.Integrated design of the veneer dryer can greatly improve the utilization rate of the space occupied. The veneer enterprises can do the drying all the times ,which can avoid the wet veneer deterioration due to climate, improve the drying effect.

Contact Now

Product Details

Wood Biomass Burner Veneer Drying Machine

Veneer Dryer is renowed for consistently producting and high quality veneer with a uniform dry moisture content. Veneer Drying Machine offer the highest efficiency,save energy,reduce cost and environmental friendly. By adopting latest international pressure contact veneer drying technology. Roller veneer dryer has the advantages of simple operation, safety and practicality, stable operation and easy maintenance.Integrated design of the veneer dryer can greatly improve the utilization rate of the space occupied. The veneer enterprises can do the drying all the times ,which can avoid the wet veneer deterioration due to climate, improve the drying effect.We have professional research team that can design different type Plywood Veneer Dryer accroding to customers requirements.

Veneer Drying Machine

Advantages of Veneer Dryer Machine

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

Veneer Drying Machine

Parameter Model	DHS44M	DHS48M	DHS52M	DHS56M	DHS60M
Work width(m)	3	3	3	3	3
Layer	2	2	2	2	2
Veneer thickness(mm)	0.8-8	0.8-8	0.8-8	0.8-8	0.8-8
Heating area (m)	40	44	48	52	56
Cooling area (m)	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10
Drying capacity (m³/h)	2.7-3.1	3-3.3	3.2-3.5	3.5-3.8	3.8-4.1
Heat exhaustion(10000 kcal)	94.5-108.5	105-115.5	112-122.5	122-132	132-143
Total power (kw)	154	169	180	198	209
Overall size LxWxH(m)	444.52.27	484.52.27	524.52.27	564.52.27	604.52.27

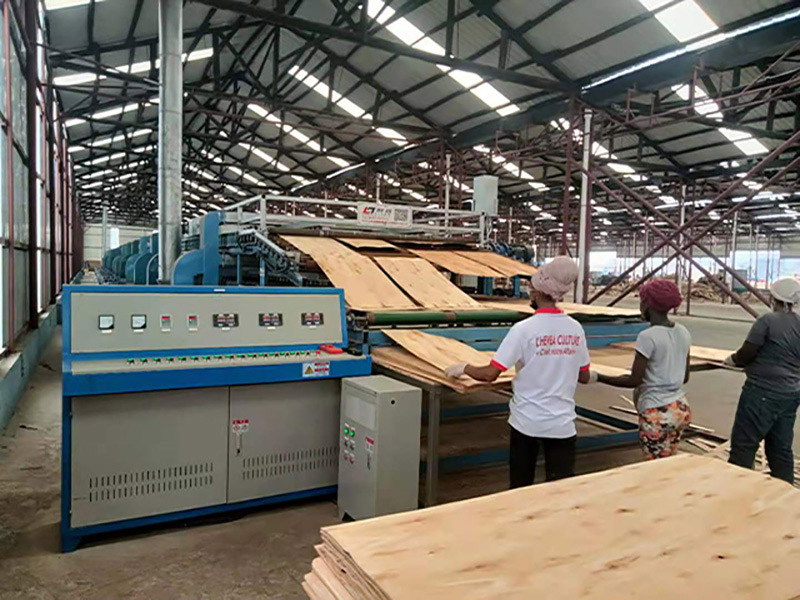

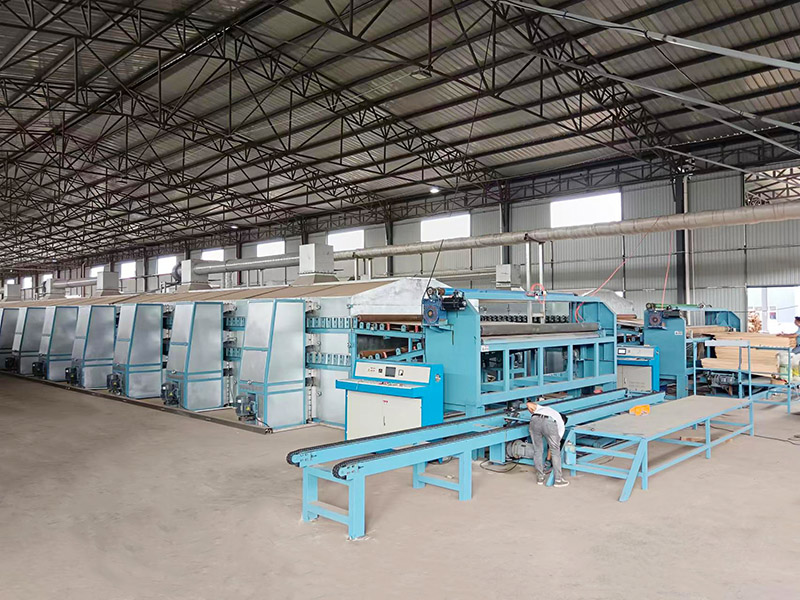

Customer Case

Customer Case

Exhibitions and customer visits

Exhibition

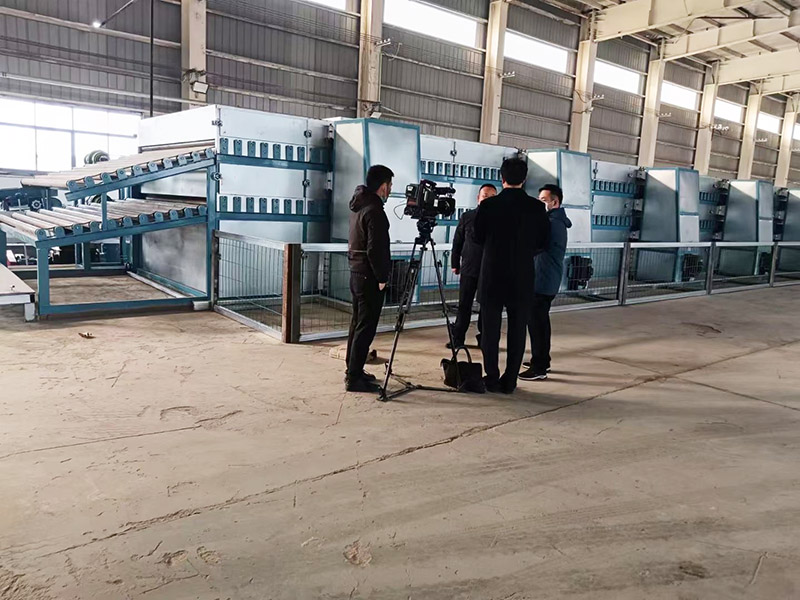

Customer visit pictures

Our Services

Pre-sale services:

1) Provide the free consultation of all Core Veneer Dryer Machine

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

4) Door to door service is possible

Product Packaging
