Wood Veneer Hot Press Drying Machine Equipment

Roller veneer drying machine has an advanced heat exchanging structure with features of high heat exchange efficiency and low heat loss. The core veneer dryer can be heated by a steam boiler, thermal oil heater, or biomass burner which can save the fuel cost the most.

Contact Now

Product Details

Wood Veneer Hot Press Drying Machine Equipment

Roller veneer dryer is one of the very important machines in making plywood. The veneer roller dryer machine is especially for drying core veneer thickness 0.6-8mm. Roller veneer drying machine has an advanced heat exchanging structure with features of high heat exchange efficiency and low heat loss. The core veneer dryer can be heated by a steam boiler, thermal oil heater, or biomass burner which can save the fuel cost the most. The composite drying cost using biomass burner heated roller dryer is about only USD 10 per cubic meter including the labor cost, fuel cost, and electricity.

veneer dryer machine

Advantages of Veneer Dryer Machine

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

veneer dryer machine

Parameter Model	DHS32M	DHS34M	DHS36M	DHS38M	DHS40M	DHS42M
Work width（m）	3	3	3	3	3	3
Deck	4	4	4	4	4	4
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	28	30	32	34	36	38
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	About 5	About 5.5	About 5.8	About 6.2	About 6.6	About 7
Heat exhaustion（10000 kcal/h）	About 175	About192	About203	About217	About231	About245
Total power (kw) about	135	140	145	150	155	160
Overall size LxW（m）	43*5.5	45*5.5	47*5.5	49*5.5	51*5.5	53.*5.5

Customer Case

Customer Case

Exhibitions and Customer Visits

Exhibition

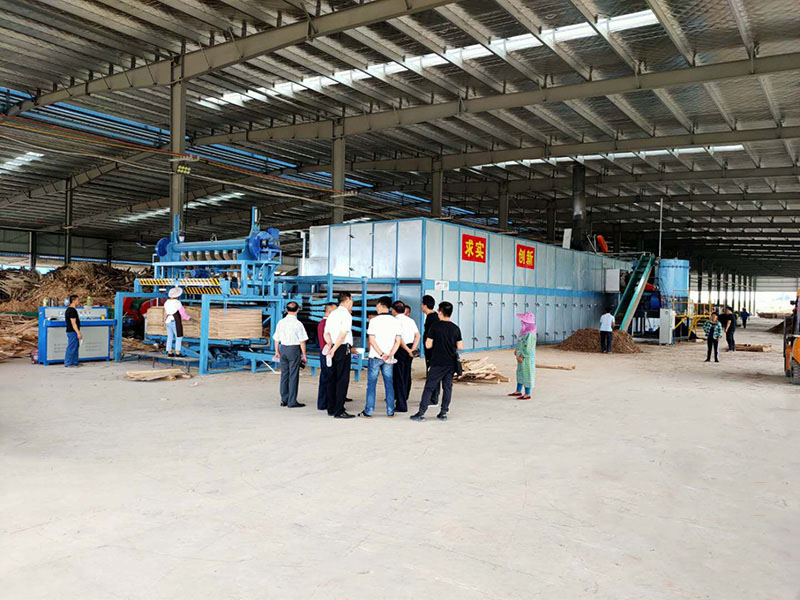

Customer visit pictures

The Factory

Our Services

Pre-sale services:

1) Provide the free consultation of all veneer dryer machine

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory.

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment.

3) Train the first-line operator.

After sale services:

1) 24 hours online service.

2) Provide the VIDEO with Install and debug the equipment.

3) Provide technical exchanging（Technical phone：+8615806625431）Door to door service is possible.
