Multifunctional Wood Sawdust Crusher Machine

Reasonable structure,simple operation,high automatic level,high safety coefficient and production capacity,less manpower,easy maintenance.It is the ideal equipment for biomass power generation enterprises.

  Contact Now
Product Details

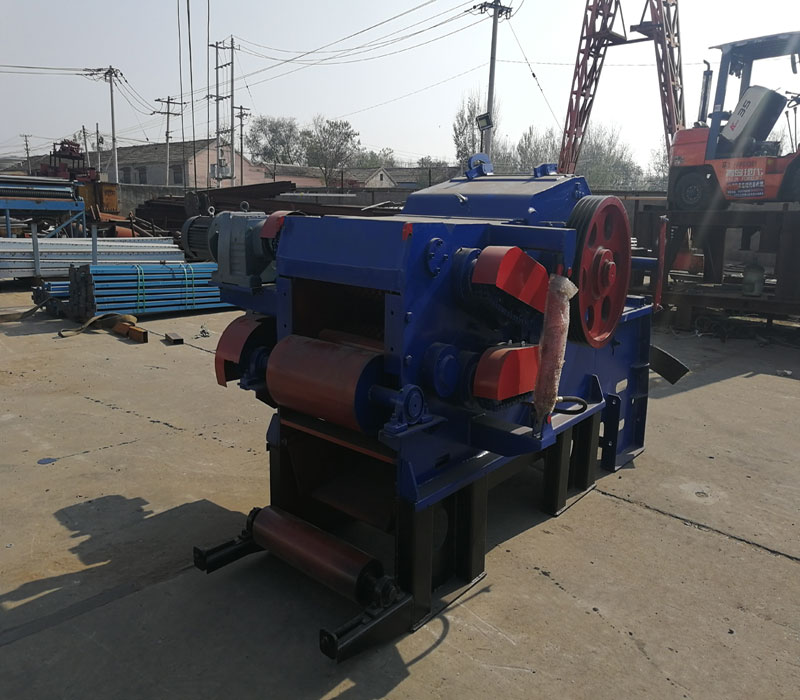

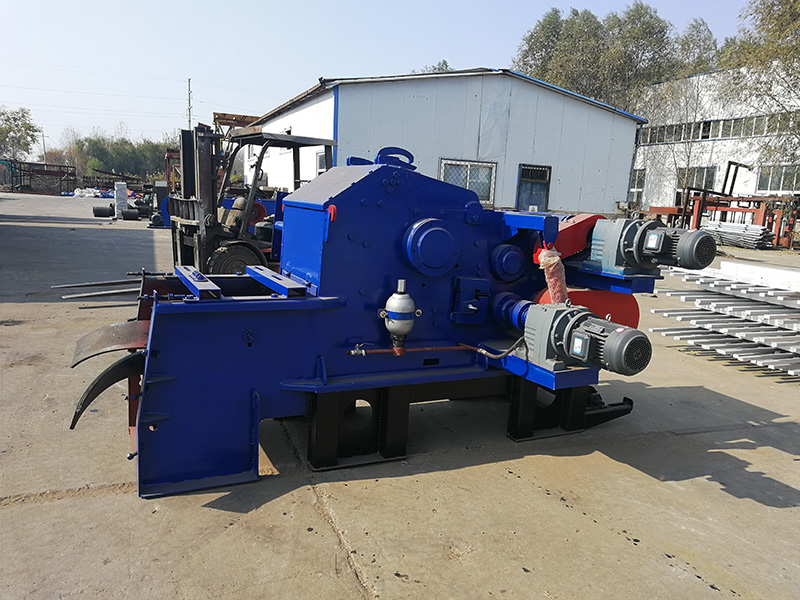

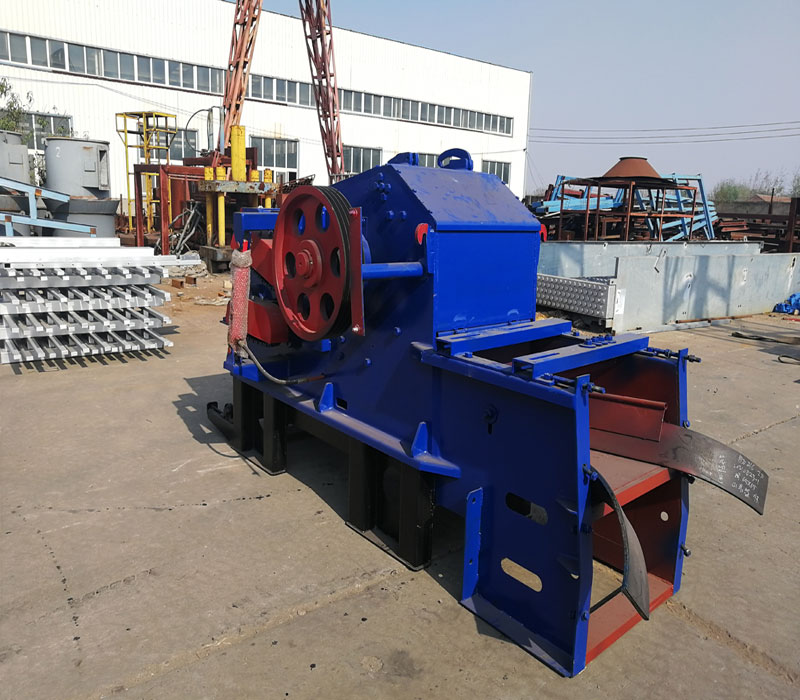

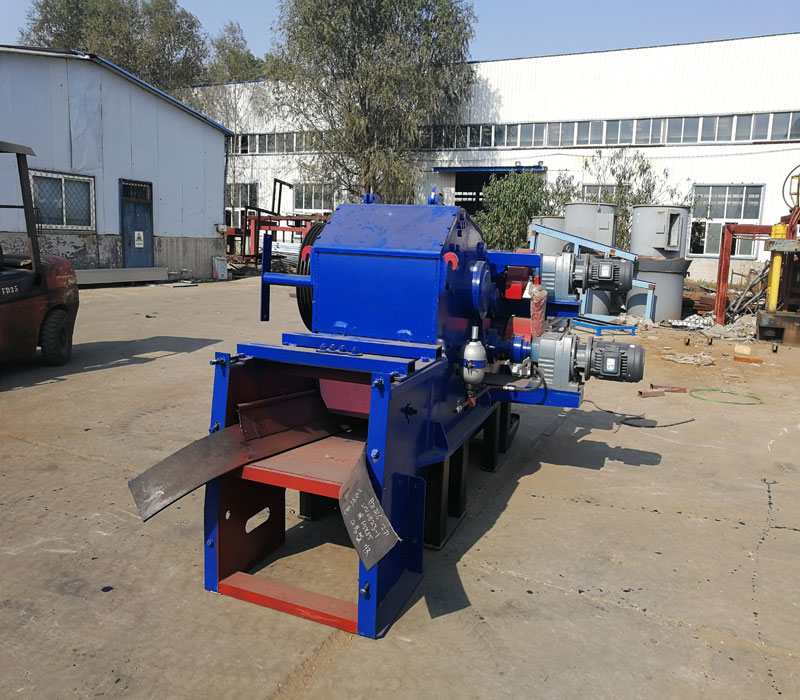

Multifunctional Wood Sawdust Crusher Machine

Wood chipping machine is one of the normally used machines in wood working field.it is used to chip the wood pieces, wood blocks and other waste wood into small pieces. The wood chippers machine can be used together with shine roller veneer dryer and biomass buner.as the wood chips size of the biomass burner can not be so big size.the wood chipper can chip the waste wood into pieces about size 3-4cm. except for wood veneer dryer,the wood chipper can also be used in other field of woodworking filed.it is very high efficiency chipping machines.

 wood crusher

 wood crusher

Model

BX216

Input conveyor length(m)

6

Output conveyor length(m)

11

Tool roll diameter(mm)

600

Feed port size(mm)

230*500

Flying knife number

2pc

Tool roll speed (r/m)

590

Maximum diameter of processing raw material(mm)

230

Feeding speed(m/min )

35

Wood chips size(mm)

30

Capacity(ton/h)

7-8

Main motor power(kw)

55

Feed roller motor power(kw)

3-4

Oil pump motor power(kw)

1.5*1

Weight(kg)

4070

Overall size(mm)

2600*1900*1210

Conveyer motor power(kw)

3
