single deck Wood Veneer Roller Drying Machine

The biomass burner is Shine patented product. It can burn all kinds of waste wood directly to reduce the drying cost mostly. Compared to steam type or heat conduction oil type veneer dryer, the drying cost is reduced greatly.

Contact Now

Product Details

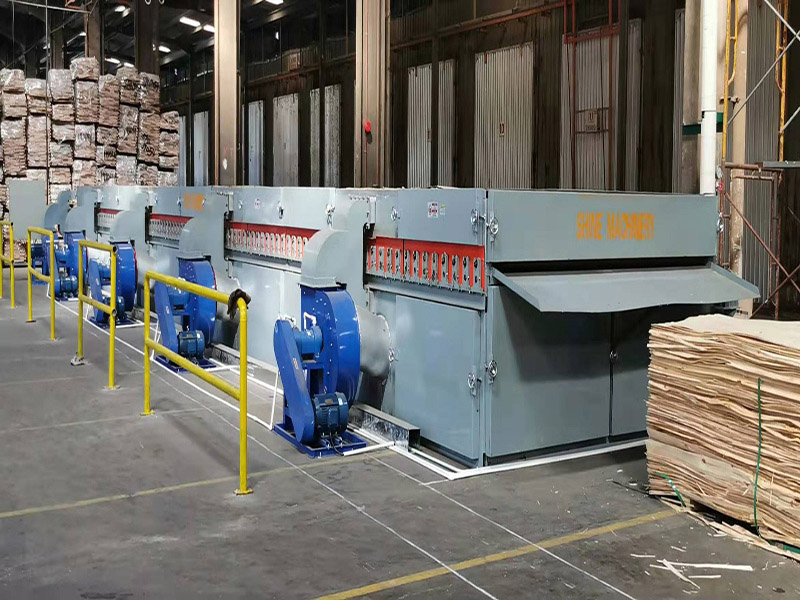

Wood Veneer Roller Drying Machine

Roller veneer dryer is a new generation wooden veneer drying system.It adopts the latest international pressure contact veneer drying technology to ensure the veneer is heated evenly.it may be used to dry rubber wood, eucalyptus, birch, teak, all styles of hard wooden and tender wooden veneer and so forth.

Shine curler veneer dryer has the benefits of easy operation, safety and practicality, stable operation and easy upkeep. the techniques of hot urgent-leveling-drying are finished at the identical time.the veneer after drying is flat, clean and with out marks and the moisture content material is uniform.

veneer dryer machine

Advantages of Veneer Dryer Machine

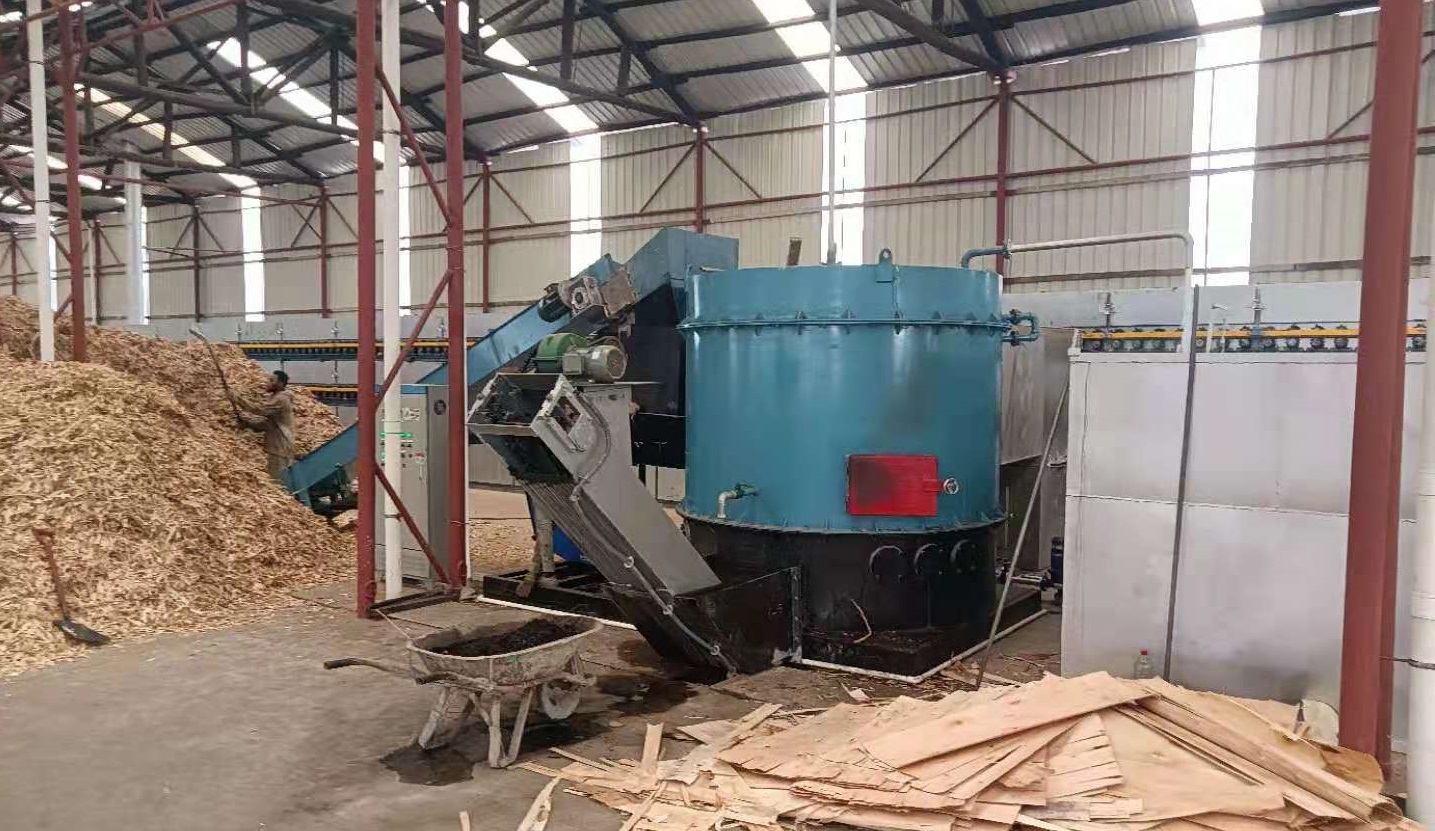

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

Parameter Model	DHS44M	DHS48M	DHS52M	DHS56M	DHS60M
Work width（m）	3	3	3	3	3
Deck	1	1	1	1	1
Veneer thickness（mm）	0.8-8	0.8-8	0.8-8	0.8-8	0.8-8
Heating area （m）	40	44	48	52	56
Cooling area (m)	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10
Drying capacity (m³/h)	1.5-1.7	1.65-1.8	1.7-1.9	1.8-2	1.9-2.2
Heat exhaustion（10000 kcal）	52.5-59.5	57.75-63	59.5-66.5	63-70	66.5-77
Total power (kw) about	90	97	105	112.5	123
Overall size LxW（m）	49*4.5	53*4.5	57*4.5	61*4.5	65*4.5

Customer Case

Customer Case

Exhibitions and Customer Visits

Exhibition

Customer visit pictures

Our Services

Pre-sale services:

1) Provide the free consultation of all Core Veneer Dryer Machine

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

4) Door to door service is possible
